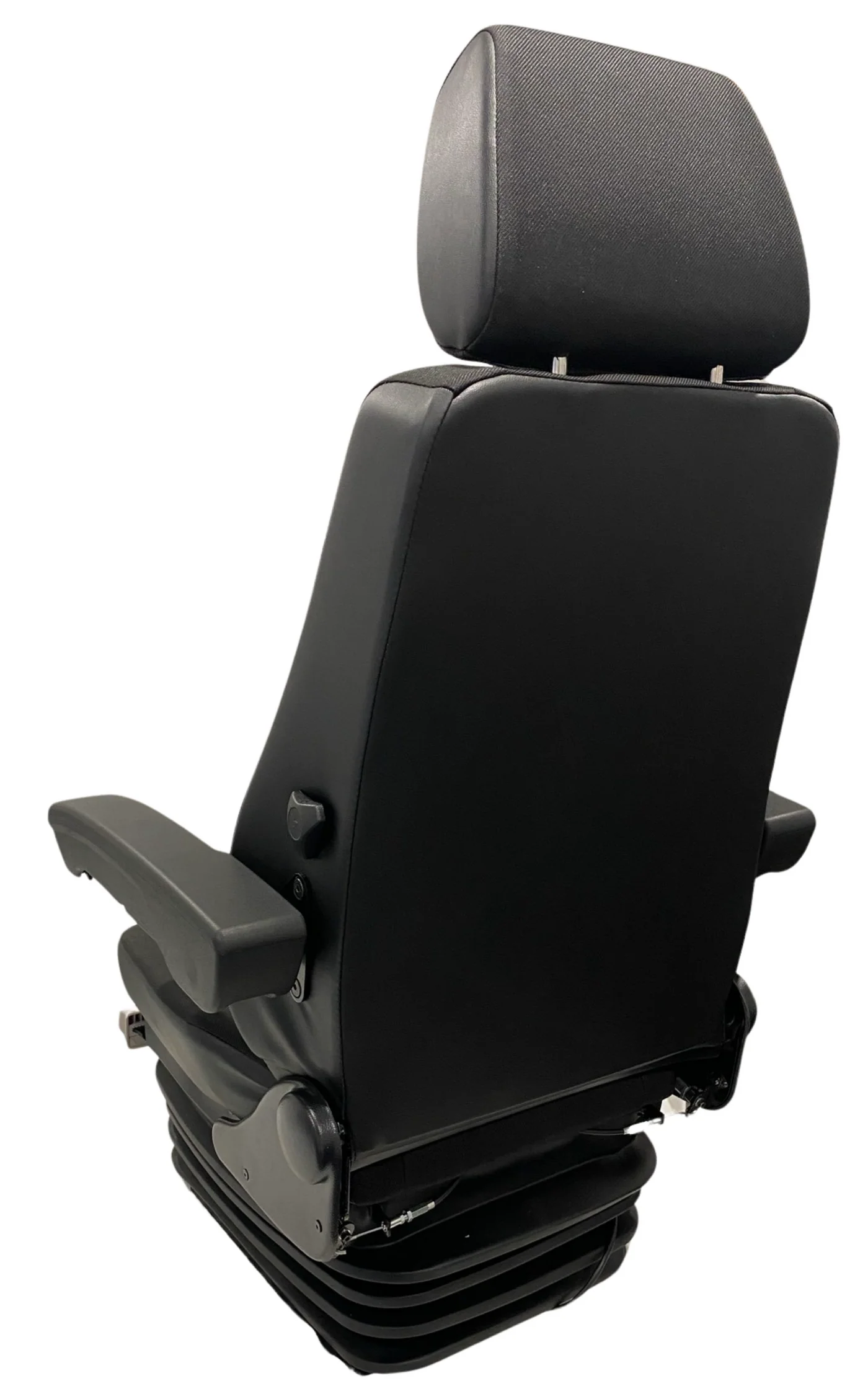

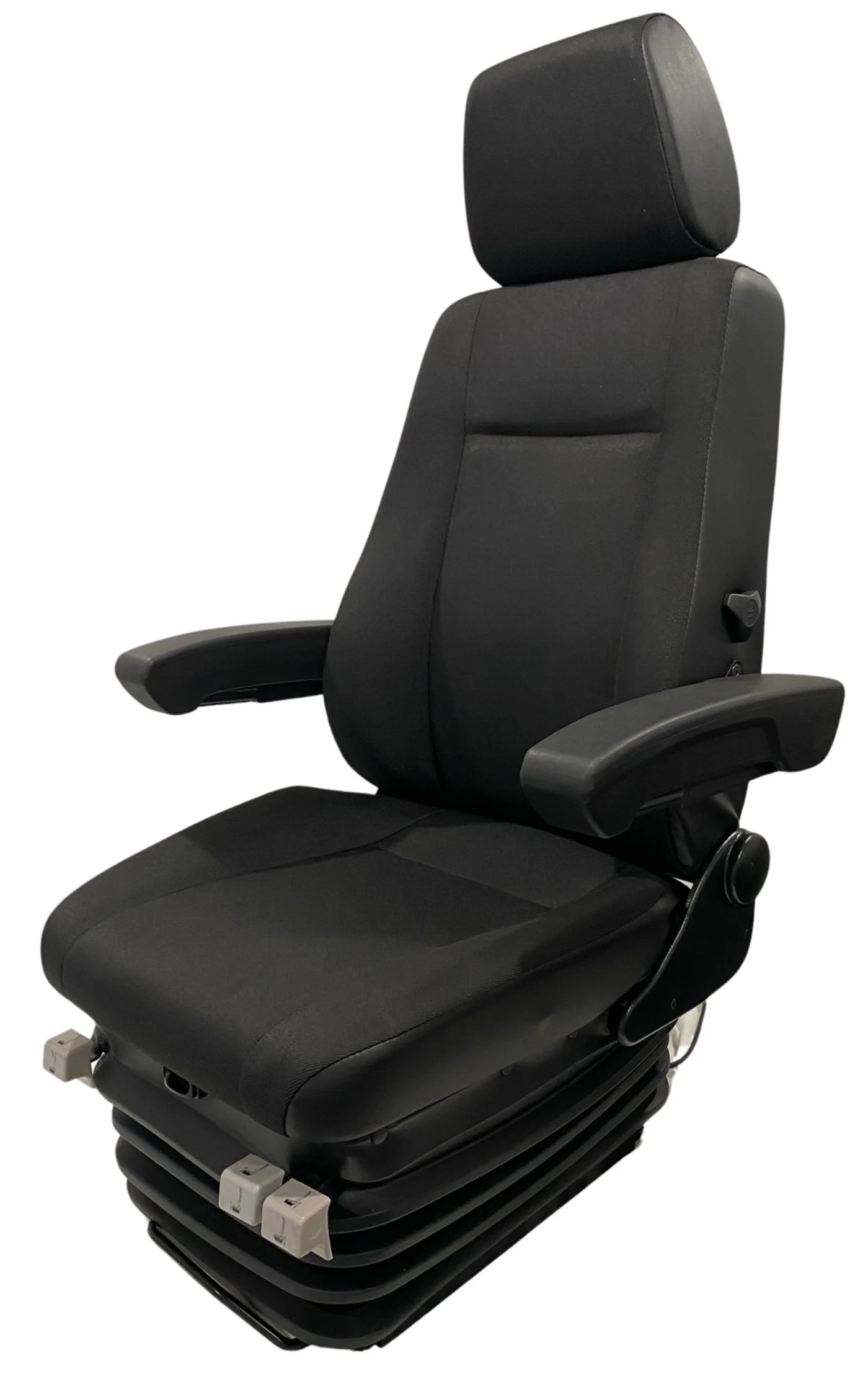

Air/Suspension Heavy Machinery Seat

Key Features

• 24V Air Suspension – Smooth, cushioned ride absorbing shocks and vibrations.

• Weight Adjustment up to 150 kg – Customizable support for different operators.

• Front-Mounted Controls – Easy access for quick seat adjustments.

• Adjustable Seatback, Headrest & Armrests – Provides optimal comfort and support.

• Adjustable Lumbar Support – Reduces fatigue and enhances back support.

• 60 mm Mechanical Seat Height Adjustment – Fine-tuned operator positioning.

• Adjustable Seat Cushion Angle – Enhances comfort during extended operation.

• Operator Present Switch Compatible – Enhances machine safety features.

• Seatbelt Compatible – Designed to integrate with standard safety restraint systems.

• Double Locking Slide Rails – Stable and secure seat positioning.

• Durable Black Heavy-Duty Fabric – Long-lasting material suitable for tough environments.

Extras / Optional Components

• Headrest

• Armrests

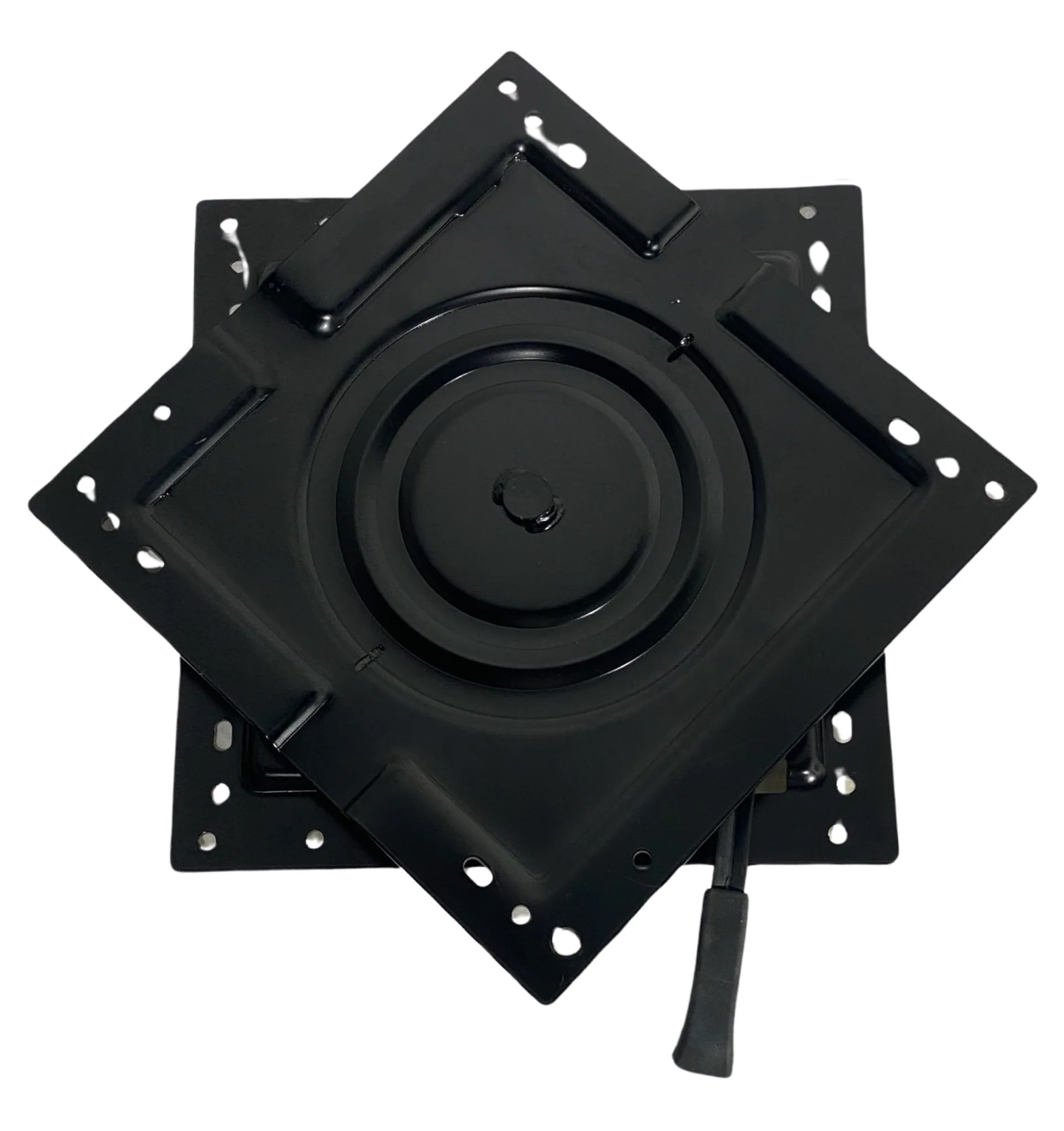

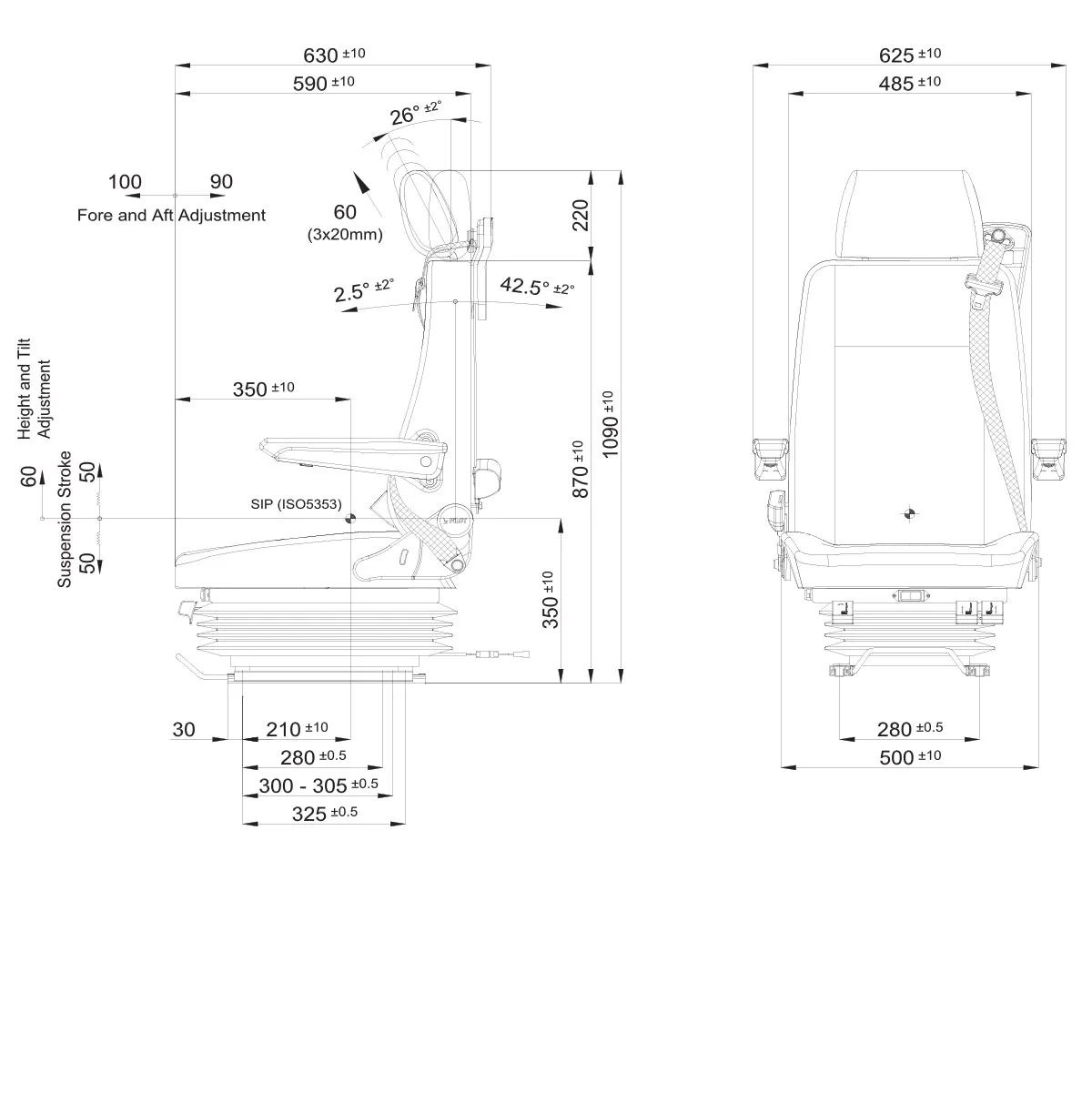

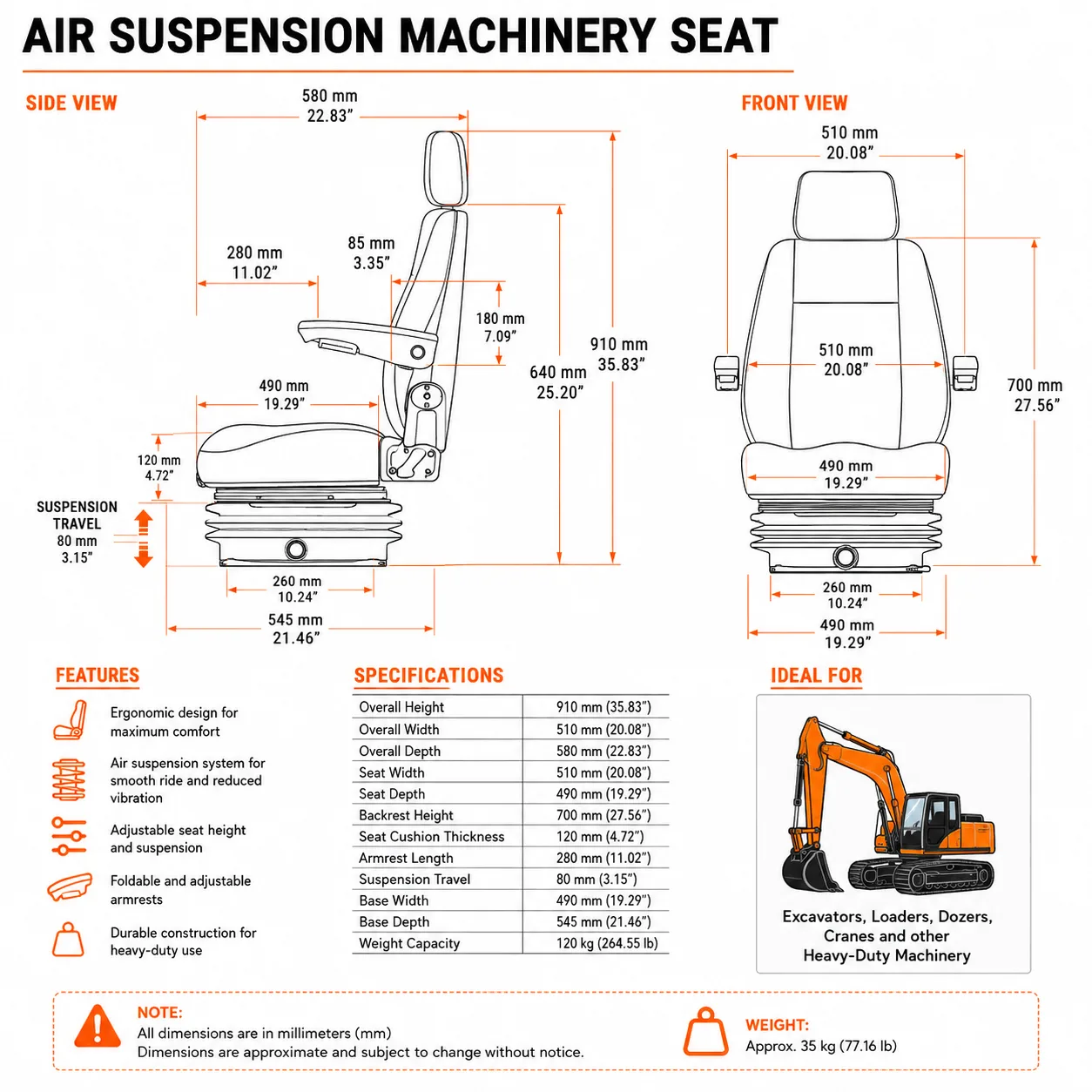

We also have pictures in our gallery of armrests, turntable, headrest, and seat diagrams for reference.

Applications

Case Machines

9007B, 9050B, 9060B, CX75SR, CX80, CX130, CX135SR, CX160, CX210, CX210LR, CX210N, CX225S, CX240, CX240LR, CX290, CX330, CX350, CX460, CX800, CX130B, CX130C, CX145C, CX160C, CX210B, CX210C, CX235C, CX240B, CX250C, CX290B, CX300C, CX350B, CX350C, CX470B, CX470C, CX700B, CX800B

Caterpillar Machines

215D, 225D, 235D, 245B, 245D, 311L, 312L, 315L, 320L, 322L, 330L, 350L, 375L
(“L” models only – seats for BL, CL, etc., are not compatible)

Doosan / Daewoo Machines

DX140, DX160, DX170, DX180, DX190, DX210, DX220, DX225, DX230, DX255, DX300, DX340, DX350, DX420, DX480, DX520, DX700, Solar 140V, Solar 180V, Solar 210V, Solar 220V, Solar 225V, Solar 255V, Solar 280V, Solar 290V, Solar 300V, Solar 340V, Solar 500V

Hitachi Machines

ZX130, ZX135, ZX160, ZX180, ZX200, ZX210, ZX225, ZX240, ZX280, ZX350, ZX380, ZX450, ZX460, ZX480, ZX500, ZX600, ZX650, ZX800, ZX135-3, ZX160-3, ZX180-3, ZX190W-3, ZX200-3, ZX210-3, ZX225-3, ZX240-3, ZX250-3, ZX270-3, ZX280-3, ZX330-3, ZX350-3, ZX450-3, ZX650-3, ZX850-3

John Deere Machines

80C, 120LC, 120C, 135C, 160LC, 160C, 180C, 200LC, 200C, 210C, 225C, 230LC, 230CLC, 270LC, 270CLC, 330LC, 330CLC, 370C, 450LC, 450CLC, 600CLC, 800C, 75D, 120D, 135D, 160D, 190D, 200D, 225D, 240DLC, 270D, 350D, 75G, 85G, 130G, 135G, 160G, 180G, 210G, 245G, 250G, 290G, 300G, 345G, 350G, 380G, 470G, 670G

Kobelco Machines

ED150, ED150-2, ED160, SK70SR, SK80, SK75SR, SK100 IV, SK120 IV, SK120 V, SK135SR, SK135SR-2, SK140SR, 140SR-3, SK140SR-5, SK160 IV, SK160 Dynamic Acera, SK170-8, SK170-9, SK200 IV, SK200 Dynamic Acera, SK210-6, SK210-8, SK210-9, SK215SR, SK220 IV, SK230SR-3, SK235, SK235SR-2, SK250-6, SK250 Dynamic Acera, SK260, SK260-9, SK270 IV, SK270 V, SK290LC, SK290 Dynamic Acera, SK295-9, SK330, SK330 Dynamic Acera, SK350LC, SK350LC-8, SK350-9, SK400 IV, SK480, SK480 Dynamic Acera, SK485, SK500-9, SK850

Komatsu Machines

PC120-6, PC120-6, PC130-7, PC138US-2, PC160-6, PC160-7, PC200-6, PC200-7, PC210-6, PC210-7, PC220-6, PC220-7, PC228US-3, PC240-6, PC240-7, PC270-7, PC300-6, PC300-7, PC308US-3, PC350-7, PC400-6, PC400-7, PC450-6, PC450-7, PC600-6, PC600-7, PC130-8, PC138US-8, PC160-8, PC200-8, PC220-8, PC228US-8, PC270-8, PC300-8, PC350-8, PC600-8, PC650-8, PC700-8, PC800-8, PC850-8

Linkbelt Machines

75 Spin Ace, 80 Spin Ace, 135 Spin Ace, 160LX, 210LX, 225 Spin Ace, 240LX, 290LX, 330LX, 460LX, 700LX, 800LX, 130 X3, 145 X3 Spin Ace, 160 X2, 160 X3, 210 X2, 210 X3, 235 X3 Spin Ace, 240 X2, 250 X3, 290 X2, 300 X3, 350 X2, 350 X3, 470 X3, 800 X2
