Armrest left Frameco
Frameco Armrest are designed for maximum comfort, providing exceptional support for operators in various seating applications. These armrests are compatible with many popular seat series, offering a versatile solution for both new installations and replacements. Additionally, joystick adapters are available, supporting a maximum joystick weight of 3.0 kg.
The ergonomic design ensures long-lasting comfort and durability, making these armrests an ideal choice for operators seeking both practicality and ease of use

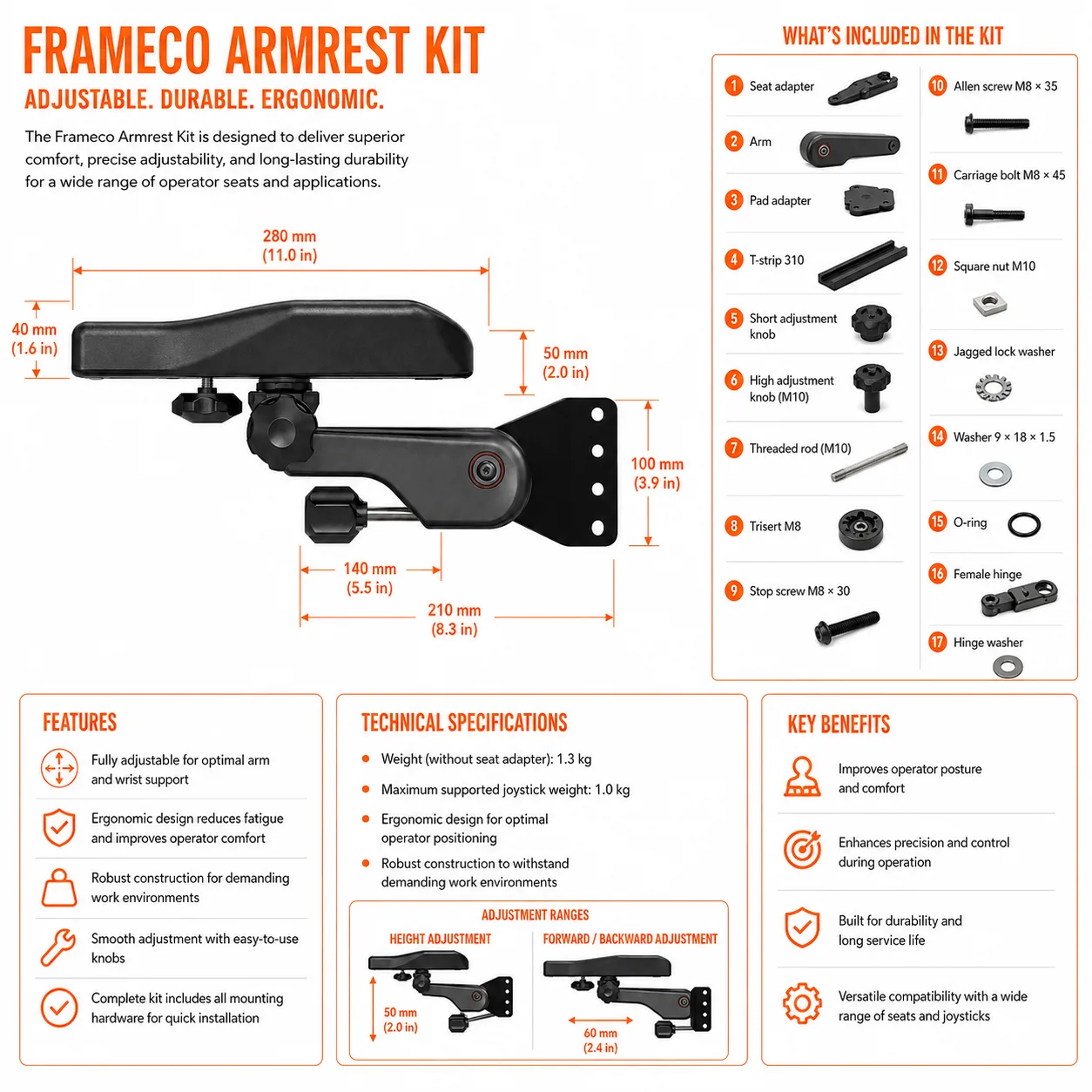

Description;
~ Seat adapter
~ Arm
~ Short knob
~ Stop screw M8x30
~ Jagged lockwasher
~ Pad adapter
~ O-Ring
~ Trisert M8
~ T-strip 310
~ Allen screw M8x35
~ Washer 9x18x1,5
~ Carriage bolt M8x45
~ High knob M10
~ Threaded Rod M10
~ Square nut M10
~ Hinge female
~ Washer hinge
Technical Specifications
~ Weight (without seat adapter): 1.3 kg
~ Maximum weight for joystick: 1.0 kg
~ References
~ JOHN DEERE COSTRUCTION
~ VOLVO CE
~ KOMATSU
~ LIEBHERR
