Boat seat CS85C1 pvc
€420.00 ex vat
CS85/C1 PVC Marine Suspension Seat
Heavy-Duty Mechanical Suspension Seat for Marine & Industrial Use
Introduction
The CS85/C1 PVC Boat Suspension Seat is a high-quality, heavy-duty seating solution designed primarily for marine environments, while also being perfectly suited for agricultural and industrial machinery. Built for safety, comfort, and durability, this mechanically suspended seat absorbs shocks and vibrations, ensuring a smooth ride even in demanding conditions.

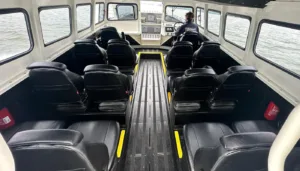

Widely used on trawlers, pilot boats, crew vessels, and HDPE boats, the CS85/C1 has proven performance, with installations of up to 28 seats per vessel. Its robust construction, ergonomic design, and multi-directional adjustability make it ideal for both professional marine and off-road applications.
Key Features
-
Mechanical Suspension System
-
Suspension travel: 90 mm
-
Effectively absorbs shocks, waves, and vibrations
-
-
Height & Slide Adjustment
-
3-stage height adjustment (60 mm range)
-

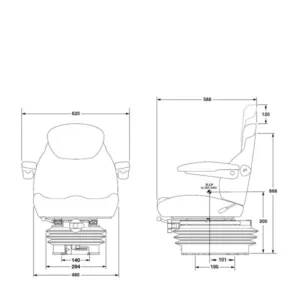

Height from base plate to seat cushion top: 310 – 370 mm
-
Slide rail travel: 150 mm
-
-
Ergonomic Comfort
-
Adjustable backrest angle
-
Mechanical lumbar support
-
Adjustable headrest
-
Backrest extension adjustable up to 80°
-
-
Weight Adjustment
-
Supports operator weight up to 125 kg
-
-
Premium Construction
-
Heavy-duty steel plate frame
-
High-rebound polyurethane foam
-
Highly durable PVC (faux leather) trim for marine use
-
-
Safety Features
-
Operator pressure sensor
-
Optional safe retractable seat belt
-
Optional Accessories
-
Adjustable armrests (angle adjustable)
-
Contact switch
-
Backrest extension
-
Seat belt
-
Heating kit
-
Fabric trim option (ideal for agricultural machinery)
Applications
The CS85/C1 Suspension Seat is a universal fit and suitable for a wide range of environments, including:
Marine Applications
-
Trawlers
-
Pilot boats
-
Crew and captain seats
-
Passenger seating on HDPE boats
-
Commercial and workboats
Agricultural & Industrial Applications
-
Tractors
-
Forklifts
-
Dozers
-
Excavators and trenchers
-
Aerial lifts
-
Floor scrubbers
-
Riding mowers
-
Heavy machinery and off-road vehicles
Why Choose the CS85/C1?
With its 90 mm suspension stroke, 3-level height adjustment, and mechanical shock absorption, the CS85/C1 significantly reduces operator fatigue and physical strain. Its strong PVC marine-grade cover, combined with a steel frame and ergonomic design, ensures long-lasting performance in harsh environments.
The CS85/C1 is a safe, comfortable, and durable suspension seat, trusted by marine professionals and machinery operators worldwide.
