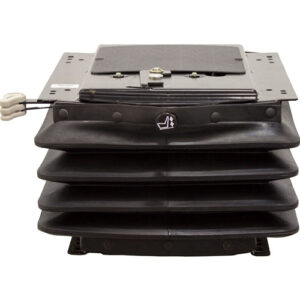

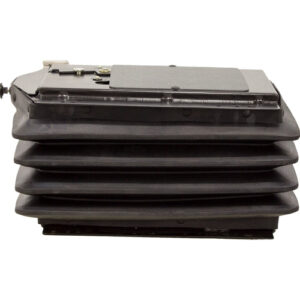

CASE JX REPLACEMENT SUSPENSION UNIT
€350.00 ex vat
Product Description
The Case JX replacement suspension seat is a durable mechanical spring suspension designed for compact and utility tractors. Featuring 80 mm suspension travel, driver weight adjustment from 50 to 130 kg, and longitudinal adjustment of 180 mm, this seat ensures maximum comfort and ergonomic support while reducing vibration and fatigue during long working hours.
With 3-position height adjustment (60 mm) and a robust mechanical suspension system, this seat is ideal for row crop tractors, small utility tractors, and agricultural machinery. Its compact design allows it to fit easily into tight operator cabins while providing full ride control and comfort.
This direct replacement suspension seat is engineered to improve operator comfort, enhance performance, and increase productivity in agricultural, construction, and marine applications.
Key Features
-
Mechanical spring suspension
-
Suspension travel: 80 mm
-
Driver weight adjustment: 50–130 kg
-
Longitudinal adjustment: 180 mm
-
Height adjustment: 3 positions (60 mm)
-
Heavy-duty shock absorber for smooth ride
-
Compact design for small tractors and machinery
-
Easy-to-operate ride control
Applications / Fitment
International Harvester Models: 1026*, 1066, 1206, 1256, 1456*, 1466, 1468, 1566*, 21026*, 21206, 21256, 21456, 2656, 2706, 2756, 2806, 2826, 2856, 706, 756, 766, 806, 826, 856, 966
(*Requires Hy-Capacity Cushion Sets or original seat)
Case IH Farmall Series: 75C, 85U, 90, 95, 95C, 95HC, 95U, 105U
Case IH JX Series: JX55, JX60, JX70, JX75, JX80, JX85, JX90, JX95
Seat Systems Ltd stocks tractor seats for all makes and models, including Massey Ferguson, David Brown, John Deere, New Holland, Leyland, Deutz, Fiat, Landini, Fendt, Same, Case, International, Zetor, as well as diggers, dumpers, and industrial machinery.
Why Choose Seat Systems Ltd
-
Over 40 years of experience in seating for agricultural, construction, and industrial machinery
-
Wide stock of replacement tractor seats, suspension components, and spare parts
-
Expert staff to help with any seating requirement, no matter how complex
-
Direct replacement seats designed to reduce vibration and improve operator comfort
