P165/M110X seat

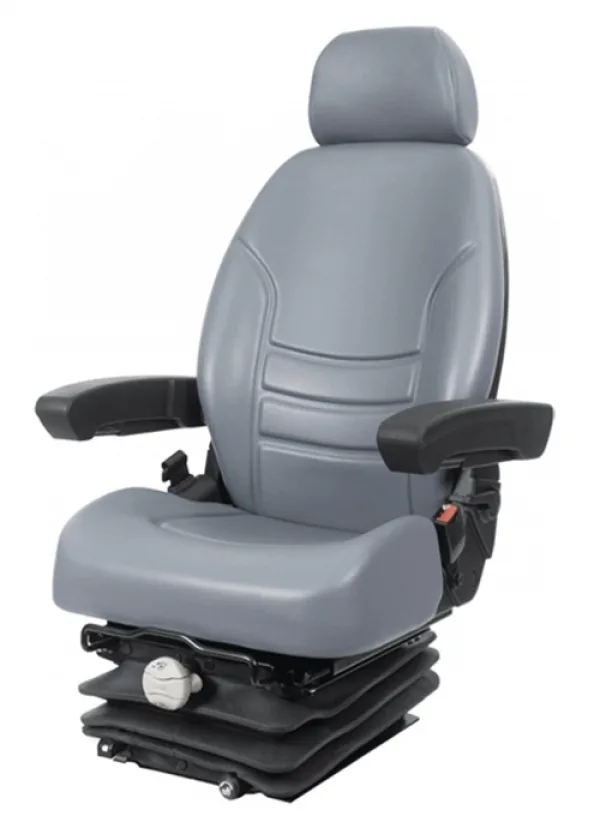

P165/M110X Suspension Seat
Heavy-Duty Operator Seat for Agricultural, Construction & Industrial Machinery
The P165/M110X Seat is a versatile operator seat designed to deliver exceptional comfort, durability, and ergonomic support across a wide range of agricultural, construction, industrial, and commercial vehicle applications. Available with either air suspension or mechanical suspension, this premium seating solution helps reduce operator fatigue while improving productivity during long working hours.
Engineered for demanding environments, the P165/M110X seat features a robust suspension system that effectively absorbs shock, vibration, and impacts commonly experienced when operating heavy machinery. The result is a smoother ride, improved comfort, and reduced strain on the operator throughout the working day.
Designed to accommodate operators of different sizes and preferences, the seat offers a wide range of adjustments including fore and aft slide travel, height adjustment, backrest recline, lumbar support, seat cushion tilt adjustment, adjustable armrests, and an adjustable headrest. These features allow users to create an optimal seating position for maximum comfort and ergonomic support.
The P165/M110X is available with a choice of durable cloth trim or hard-wearing vinyl upholstery, making it suitable for both enclosed cabs and harsher working environments. Additional options such as seat heating, operator presence switch, document storage pouch, and multiple seat belt configurations further enhance functionality and operator convenience.
Whether installed in a tractor, excavator, wheel loader, forklift, crane, truck, telehandler, or industrial vehicle, the P165/M110X seat provides a reliable and comfortable seating solution built to withstand everyday commercial use.
KEY FEATURES
Air or Mechanical Suspension
- Air suspension with integrated 12V or 24V compressor
- Mechanical suspension with manual weight adjustment up to 150 kg
Suspension Travel
- 80 mm suspension stroke
- Smooth vibration and shock absorption
Height Adjustment
- 60 mm height adjustment
- Improved operator positioning
Turn Table Option
- Easy operator rotation and positioning
Adjustable Shock Absorber
- Tunable ride comfort for different operating conditions
Fore / Aft Slide Travel
- 190 mm slide adjustment
- Optimised driving position
Backrest Adjustment
- Recline and tilt adjustment
- Enhanced operator support
Lumbar Support
- Adjustable lumbar support
- Reduced fatigue during extended operation
Seat Cushion Tilt
- Adjustable seat pan angle
- Improved leg and lower back comfort
Adjustable Armrests
- Foldable and adjustable armrests
- Customised operator support
Adjustable Headrest
- Enhanced neck and upper back support
UPHOLSTERY OPTIONS
Available Trims
- Cloth Trim
- Vinyl Trim (Vacuum Type)
- Cloth Trim (Vacuum Type)
SEAT BELT OPTIONS
- 2-Point Seat Belt
- 3-Point Seat Belt
CONTROL OPTIONS
Available with:
- Front Controls
- Left-Hand Controls
- Right-Hand Controls
(Excluding backrest recline handle)
OPTIONAL EXTRAS
- Seat Heater
- Operator Presence Switch
- Document Box / Storage Pouch
- Additional Slide Rails Between Seat Top & Suspension
Key Benefits
- Available with air or mechanical suspension
- Air suspension models available with 12V or 24V integrated compressor
- Up to 150 kg operator weight adjustment
- 80 mm suspension stroke for improved ride comfort
- 60 mm height adjustment
- 190 mm fore and aft slide travel
- Adjustable shock absorber
- Adjustable lumbar support
- Reclining backrest with tilt adjustment
- Seat cushion tilt adjustment
- Adjustable and foldable armrests
- Adjustable headrest
- Available in cloth or vinyl trim
- Optional seat heater
- Available with 2-point or 3-point seat belts
- Suitable for agricultural, construction, industrial, and commercial vehicle applications
Applications
The P165/M110X seat is commonly fitted to:
- Tractors
- Harvesters
- Agricultural machinery
- Excavators
- Wheel loaders
- Cranes
- Telehandlers
- Forklifts
- Industrial vehicles
- Utility vehicles
- Commercial trucks and lorries
- Material handling equipment
Built for comfort, safety, and long-term durability, the P165/M110X seat is an ideal replacement or upgrade seat for operators working in demanding environments where ergonomic support and reliable suspension performance are essential.
