CS85/C1AR Deluxe Seat
€395.00 ex vat

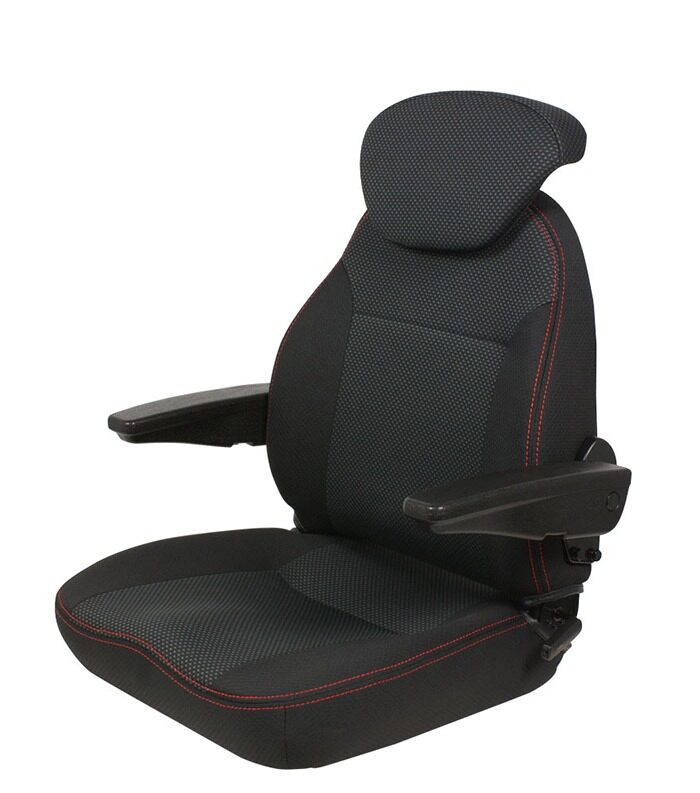

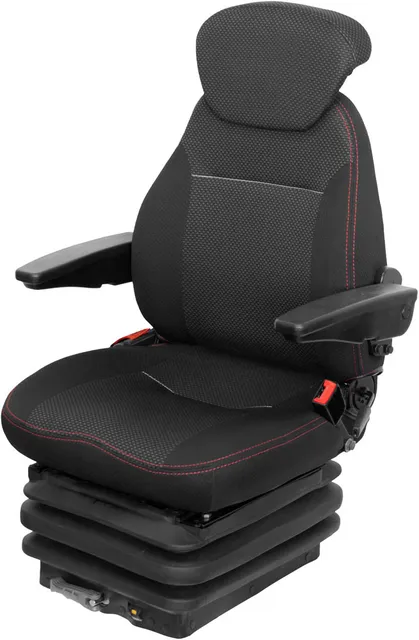

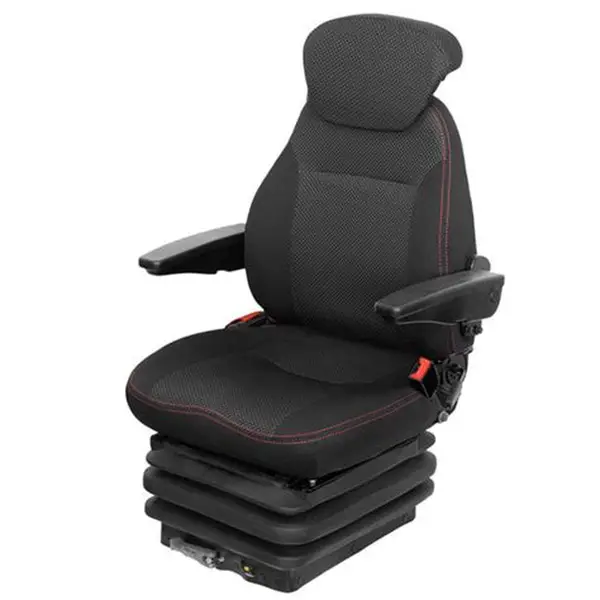

CS85 / C1 Deluxe Agricultural Seat – Mechanical Suspension
The CS85 / C1 Deluxe seat is a mechanical suspension seat designed for agricultural machinery, construction equipment, and industrial vehicles. Built to provide maximum comfort and operator support, it reduces fatigue during long working hours while improving control and safety.
With a robust 3-stage height adjustment, lumbar support, and adjustable backrest, this seat accommodates operators weighing up to 125 kg. Its fabric trim is durable and suitable for heavy-duty environments, while the mechanical suspension and sealed units protect against dirt and debris, ensuring long-term reliability.
Key Features
-
Mechanical suspension for shock absorption
-
Suspension travel: 90 mm
-
Slide rail travel: 150 mm
-
Height adjustment: 3-stage, 60 mm
-
Weight adjustment: 50–125 kg
-
Adjustable backrest and lumbar support
-
Fabric seat cover for durability
-
Optional extras:
-
Two-point retractable seatbelt
-
Armrests
-
Headrest
-
Applications
Case Machines
-
Graders: 845, 845B, 865, 865B, 885, 885B
-
Loaders: 521D, 521E, 621, 621B, 621C, 621D, 621E, 721, 721B, 721C, 721D, 721E, 821C, 821E, 921B, 921C, 921E
Caterpillar Machines
-
Graders, Dozers, Crawlers, Rollers, Telehandlers, Wheel Loaders: 120G → 972G II
John Deere Machines
-
Graders: 344G, 544E, 544G, 644E, 644G, 570B → 872D
-
Loaders & Skidders: 344G → 744J, 548E, 648E, 548G, 648G
Komatsu Machines
-
Graders: GD555-3 → GD675-5
-
Loaders: WA100-3 → WA450-6
-
Dozers: D31EX → D39PX-22
Kubota Machines
-
Wheel Loaders: R530, R540, R630, R640
-
Part Numbers: R5615-39000, R5615-39002, R5615-39500
New Holland Machines
-
D75, D85, D95, D150
-
Part Numbers: 87450937, 87450938
Takeuchi Machines
-
Mini Excavators: TB125 → TB1140
-
Skid Steers: TL6 → TL250
Volvo Machines
-
Loaders: L30B → L150C
Benefits
-
Comfortable operator experience with mechanical suspension and adjustable features
-
Durable and easy to service, suitable for agricultural and industrial applications
-
Ideal for heavy machinery, including tractors, excavators, dumpers, telehandlers, and forklifts
-
Protective sealed suspension units keep dirt and debris out for long-term performance

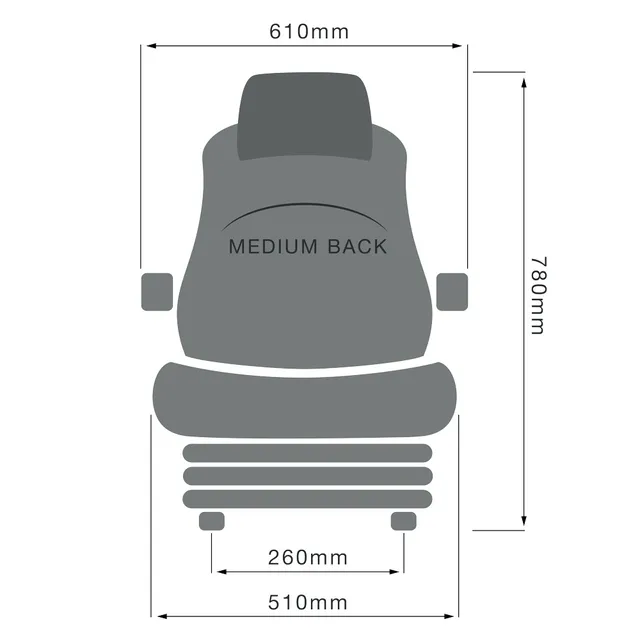

Specifications Summary
| Feature | Specification |
|---|---|
| Seat width | 510 mm |
| Suspension travel | 90 mm |
| Slide rail travel | 150 mm |
| Height adjustment | 3-stage (60 mm) |
| Weight adjustment | 50–125 kg |
| Backrest | Adjustable with mechanical lumbar support |
| Trim | Durable fabric |
| Optional extras | Armrests, headrest, 2-point retractable seatbelt |
