CS85 / H90
Applications
Replaces Case Part Numbers: 185156A1, 185157A2, 185158A2, 87399491, 87399492, 84276107, 84276108, 87454292, 87578904, 87578905
Case Machines: Backhoes; 580C, 580D, 580E, 580SE, 580K, 580SK, 580L, 580SL, 580M, 580SM, 580N, 580SN, 590L, 590SL, 590SM, 590SN, 780C, 680L, 780D. Skip Loaders; 570LXT, 570MXT
Replaces Cat Part Numbers: 130-5564, 130-5565, 164-1203, 9R2652, 9R2653, 9R8451, 9R-9985, 9R-9986
Cat Machines: 416, 416B, 416C, 416D, 420D, 420E, 420F, 426, 426B, 426C, 426D, 428B, 428D, 430D, 430E, 430F, 432D, 432E, 436C, 432D, 442D, 442E, 444E, 446B, 446D, 450E, 450F
Replaces John Deere Part Numbers: AT407315, AT407317
John Deere Machines: 310D, 310G, 310J, 310SJ, 315SJ 410D, 410G, 410J, 710G, 710J
Replaces New Holland Part Numbers: 85815538, 85815539, 85815542, 85815543
New Holland Machines: 555E, 575E, 675E, B95, B95B, B110, B110B, LB75, LB75B, LB90, LB90B, LB95, LB95B, LB110, LB110B
Volvo Machines: BL60, BL60B, BL70

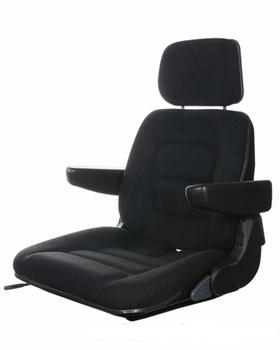

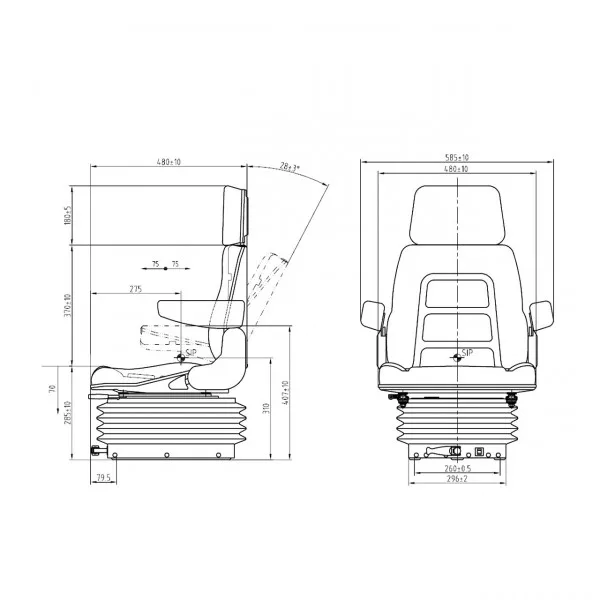

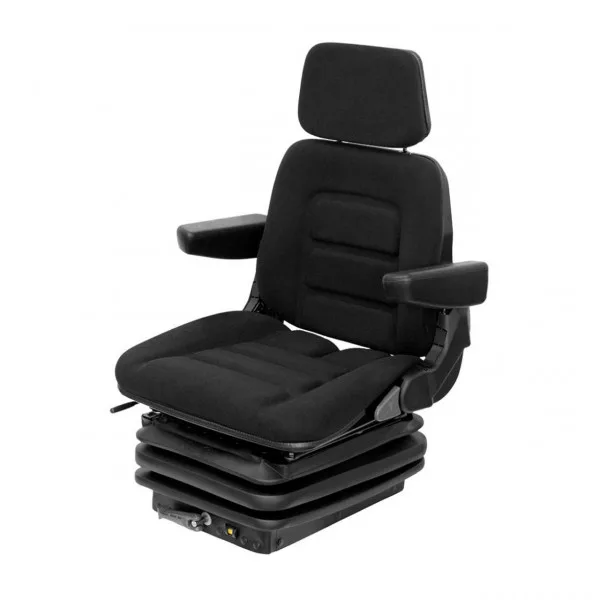

CS85 / H90 handling seat with mechanical suspension is designed for forklift seats but also for tractors, its suspension travel is 90 mm, its seat width is 490 mm, its height is adjustable in 3 steps up to 60 mm and the travel of the sliding rail is 150 mm. The UNITEDSEATS CS85 / H90 handling seat has a foldable and adjustable backrest; the driver’s weight is taken into account from 50 kg to 125 kg. Its cover is in black fabric.
Extras
Two point seatbelt
Headrest
