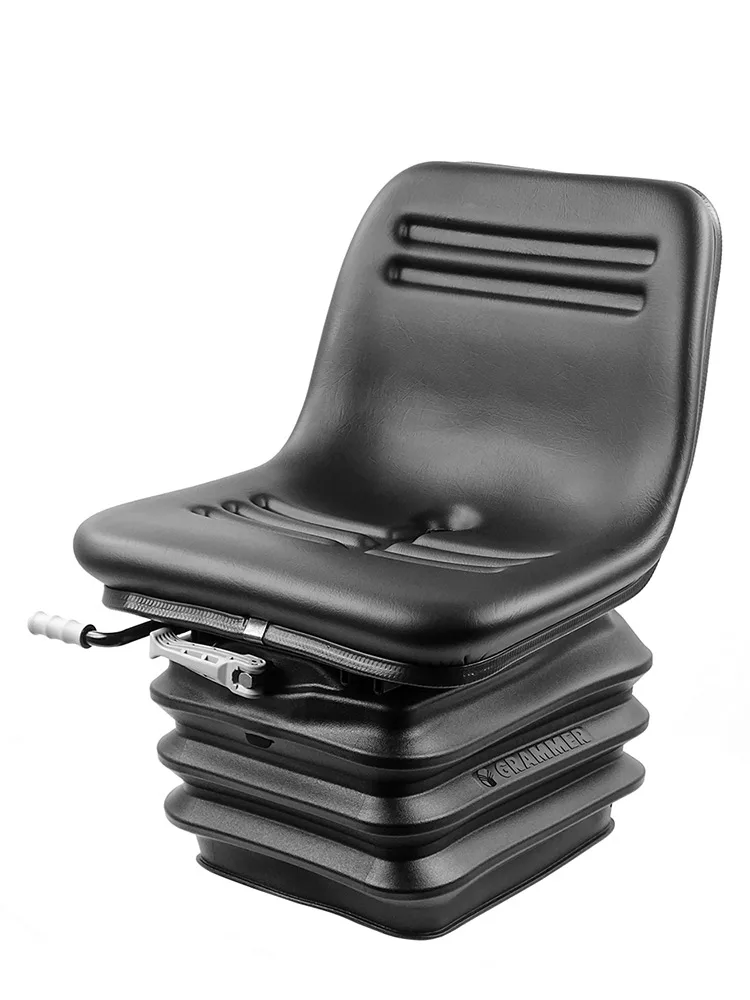

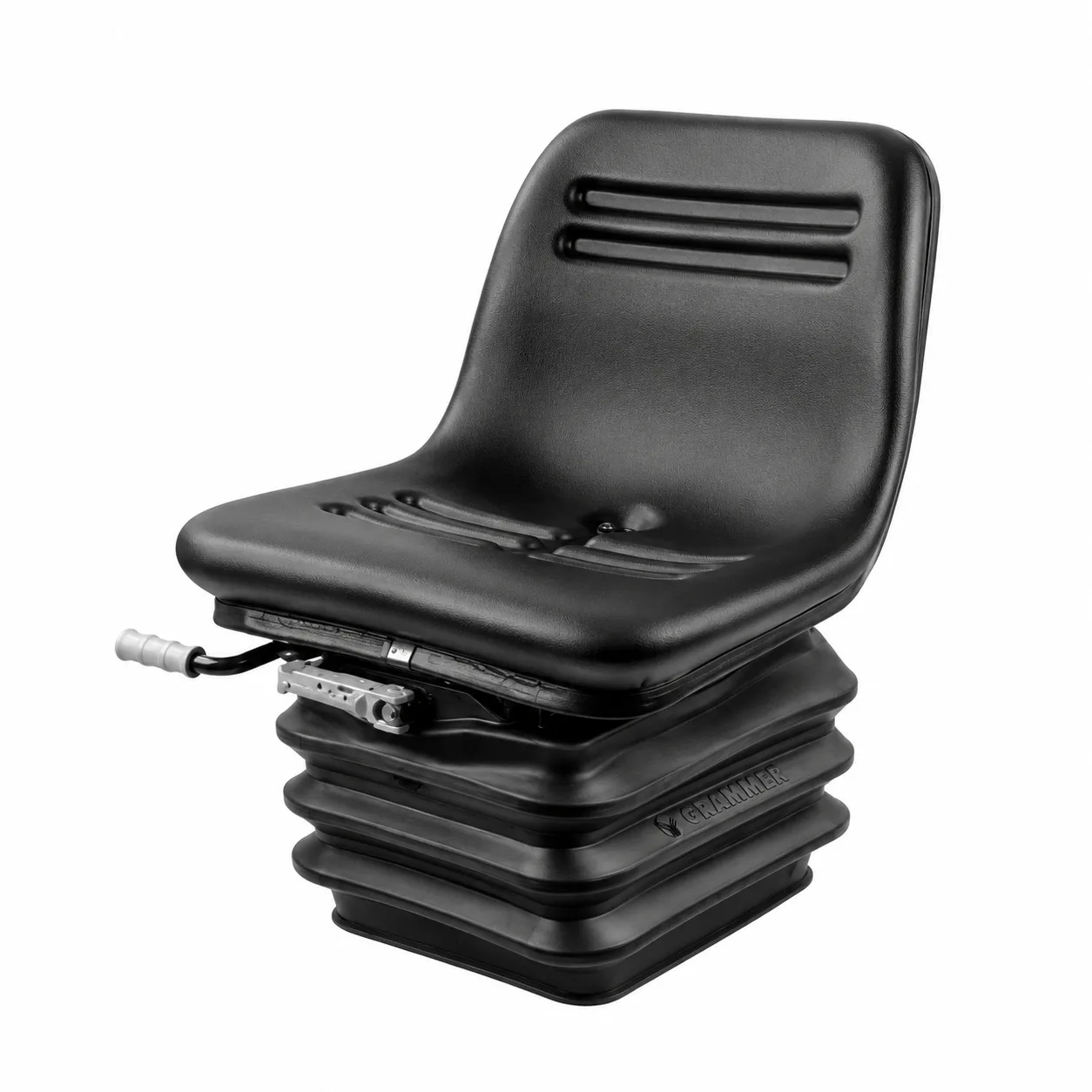

GRAMMER Compacto Basic XS / PVC Mechanical Suspension Seat – Compact Comfort for Small Cabs
The GRAMMER Compacto Basic XS introduces GRAMMER suspension seating comfort to even the smallest driver cabs, where suspended seats were previously not an option. Thanks to its ultra-compact design, 60 mm height limiter, and efficient suspension system, this seat is ideal for machines with restricted installation space.
Designed for small and narrow-track tractors, compact construction machinery, and mini-excavators, the Compacto Basic XS delivers reliable vibration reduction, durability, and comfort from the first minute of operation.

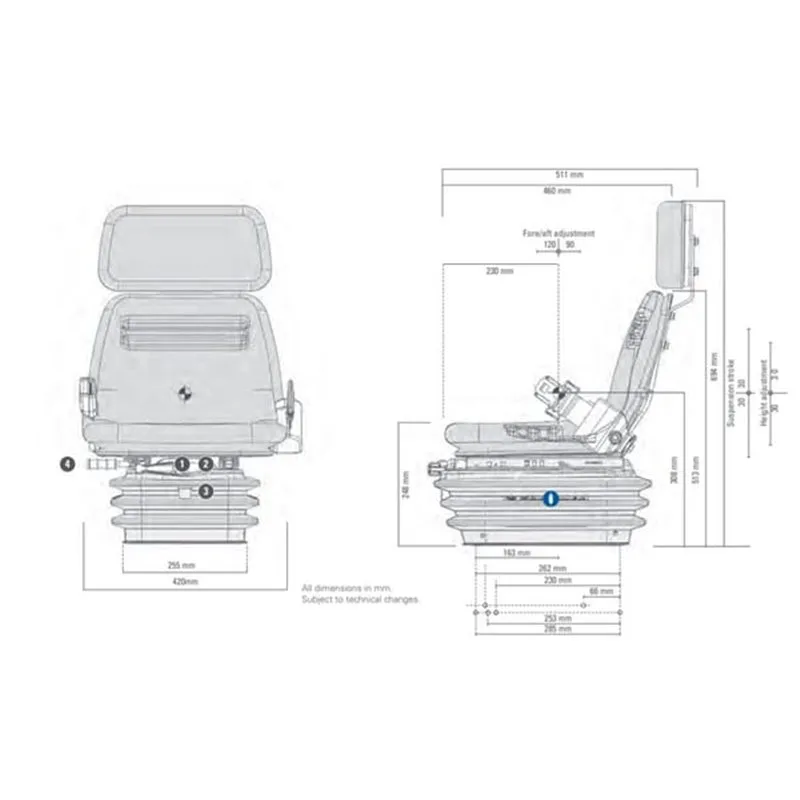

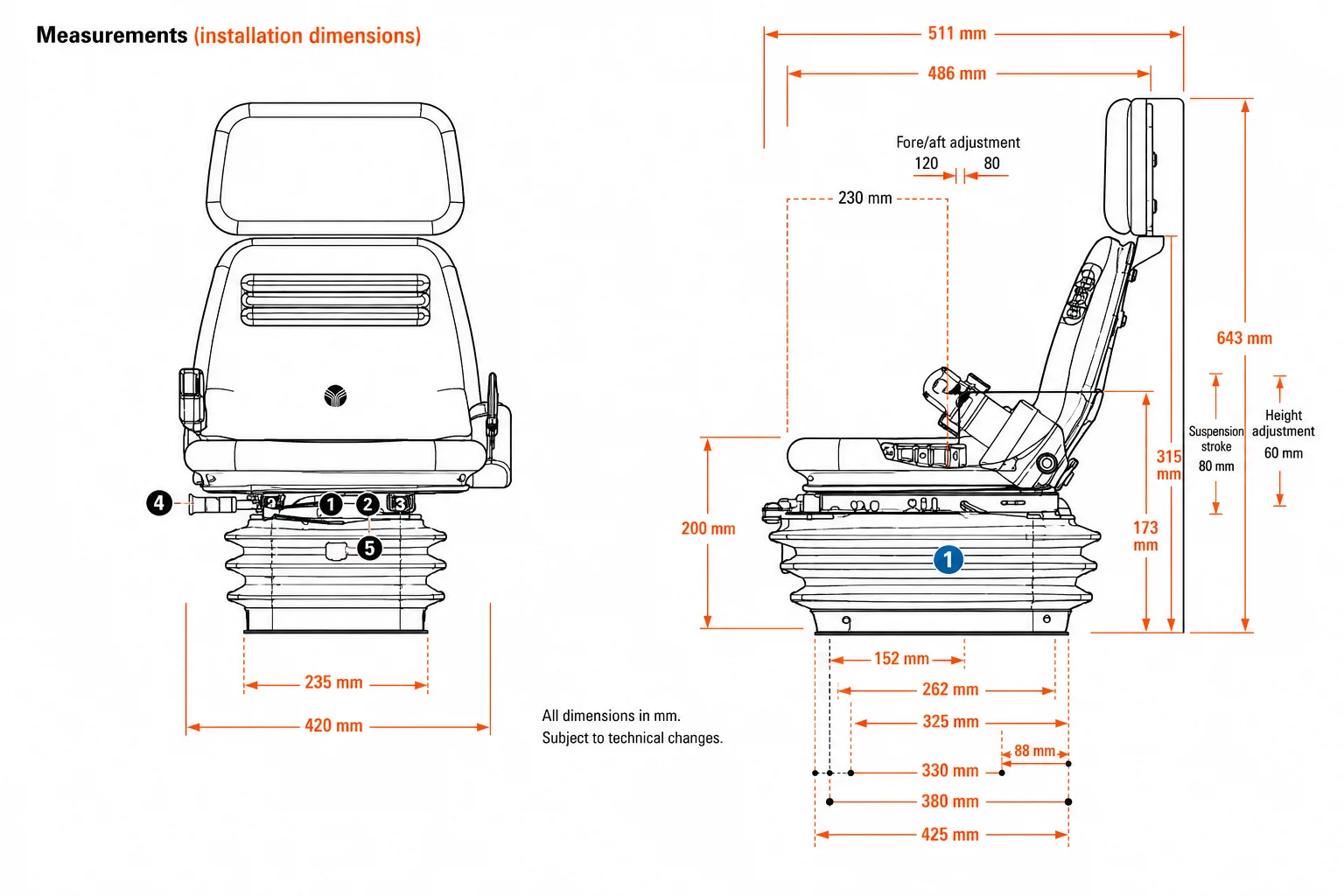

Key Features & Specifications
-
Mechanical suspension tractor seat – Compacto Basic XS
-
Scissor-type mechanical suspension with hydraulic shock absorber
-
Ultra-compact footprint for confined cab spaces
-
Suspension travel: up to 80 mm
-
Height adjustment: 60 mm (3 adjustable levels)
-
Fore / aft (longitudinal) adjustment: 210 mm
-
Mechanical weight adjustment: 50 – 130 kg
-
Backrest tilt adjustment
-
Seat cushion width: 400 mm
-

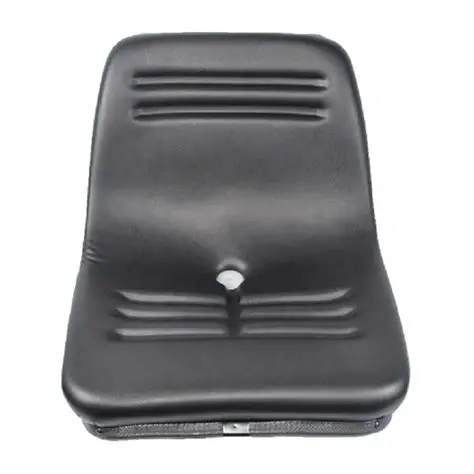

PVC upholstery for durability and easy cleaning
Applications
The GRAMMER Compacto Basic XS is ideally suited for:
-
Small and narrow-track tractors
-
Compact construction machines
-
Mini-excavators
-
Equipment with very limited cab space
Agricultural Tractors (Compact & Narrow-Track)
Often fitted to compact vineyard, orchard, and utility tractors, including:
-
John Deere (compact & utility series)
-
New Holland (Boomer / compact tractor ranges)
-
Case IH (compact tractor models)
-
Kubota (B, L, and compact series)
-
Massey Ferguson (compact and utility tractors)
-
Deutz-Fahr (compact and specialty tractors)
-
Same / Lamborghini tractors (narrow-track variants)
Construction & Compact Equipment
Common replacement seat for:
-
Kubota mini-excavators
-
Takeuchi mini-excavators
-
Bobcat compact excavators and small loaders
-
JCB mini-diggers and compact site machines
-
Yanmar mini-excavators
-
CAT compact equipment (where size allows)
Municipal & Specialist Machines
-
Street sweepers
-
Compact municipal tractors
-
Grounds maintenance equipment
-
Turf and landscaping machinery
