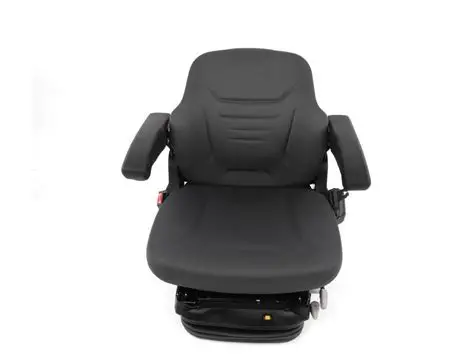

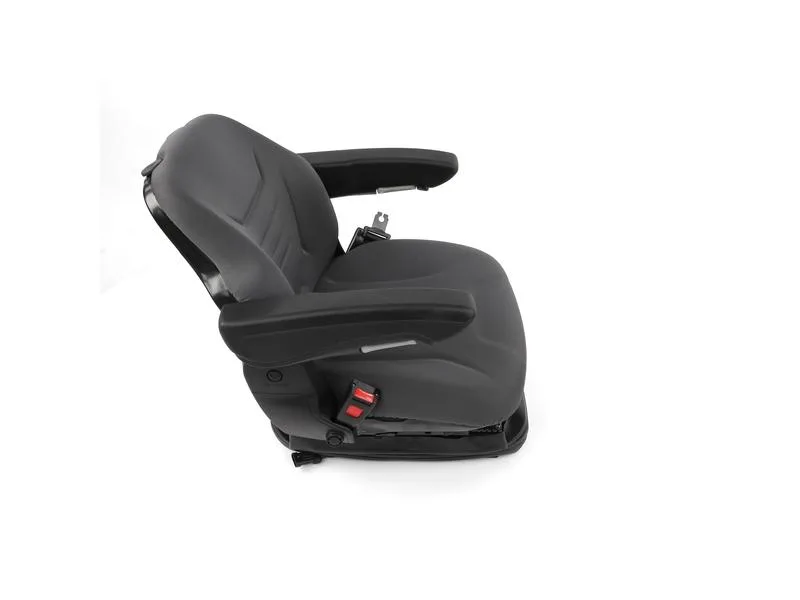

Grammer Maximo Premium – Air Suspension Seat

Grammer Maximo Premium – Air Suspension Seat

The Maximo Premium is designed for all variants of agricultural machinery, offering superior comfort, adjustability, and support for operators who spend long hours in the cab.

Suspension & Comfort Features

• Suspension Type: Air suspension with integrated 12‑volt air compressor

• Suspension Stroke: 100 mm vertical travel

• Weight Adjustment: 50–130 kg (automatic)

• Shock Absorber: Non-adjustable

• Height Adjustment: 60 mm via lever

• Fore/Aft Isolator: Yes, reduces vibration transmission

• Slide Travel: 210 mm

• Mechanical Lumbar Support: Adjustable for spinal comfort

• Backrest Tilt: Adjustable for posture

• Fold-Up Armrests: Standard

• Suspension Cover: Included for protection

• Cushion: Extra-wide, voluminous 520 mm fabric seat

Additional Features

• Turntable: 90° rotation (45° in each direction)

• Operator Presence Switch: Enhances safety by detecting when the operator is seated

Key Benefits

• Superior shock absorption for long hours on uneven terrain

• Air height adjustment makes operator positioning effortless

• Lumbar support and wide cushions reduce fatigue and risk of spinal issues

• Ideal for agricultural tractors, loaders, and utility machinery

• Automatic weight adjustment ensures comfort for different operators without manual recalibration

Compatible Makes & Models

Case IH / International Harvester

• 1055, 1255, 1455, 955

• JX100, JX1060, JX1060C, JX1070, JX1070C, JX1070N, JX1075, JX1075C, JX1075N

• JX1085C, JX1095, JX1095C, JX1095N

• JX110, JX1100, JX55, JX60, JX65, JX70, JX75, JX80, JX85, JX90, JX95

Deutz-Fahr

• AGROPLUS 100, 310, 315, 320, 330, 410, 420, 430

• DX 80, 85, 86, 90, 92, 110, 120, 140, 145, 160, 230, 250

• INTRAC 2002, 2003, 2004, 2005, 2006, 6.05, 6.30, 6.50, 6.60

Fendt

• 209 P VARIO (272), 209 P VARIO S3 (251)

• 210 P VARIO (273), 210 P VARIO S3 (252)

• 210 VARIO (333), 210 VARIO S3 (303)

• 211 P VARIO (274), 211 P VARIO S3 (253)

• XYLON 520, 522, 524

Fiat

• 100-90, 110-90, 115-90, 130-90, 140-90, 160-55, 160-90, 180-90

• 55-85, 55-90, 60-85, 60-90, 62-85, 65-90, 70-90, 72-85, 80-85, 80-90, 82-85, 85-90, 88-85, 90-90, 95-90

Ford / New Holland

• T5030, T5040, T5050, T5060, T5070

• TD5010, TD5020, TD5030, TD5040, TD5050

John Deere

• 3210, 3310, 3410, 5010, 5200, 5210, 5300, 5310, 5400, 5410, 5500, 5510, 5600, 5610, 5700

• 6010, 6010SE, 6110, 6110SE, 6210, 6210SE, 6310, 6310SE, 6410, 6410SE, 6510, 6510SE

Kubota

• M105GX-III, M115GX-III, M135GX-III

• M5091, M5111, M5140, M5400, M5500, M5700, M5850, M5970, M6060, M6800, M7060, M7131, M7500, M8200, M8560, M8970, M9000, M95GX-III, M9960

Massey Ferguson

• 1000, 1004, 1014, 1024, 1104, 1114, 1134

• 2615, 2620, 2630, 2640, 2645, 2665, 2670, 2675, 2680, 2685

• 3050, 3055, 3060, 3065, 3070, 3075, 3080, 3085, 3090, 3095

• 3115, 3120, 3125, 3140, 3610, 3630, 3635, 3645, 3650, 3655, 3660, 3670, 3680, 3690

• 4707, 4708, 550, 560, 565, 5708, 5709, 5710, 575, 590, 592, 595

• 6475, 6480, 6485, 6490, 6495, 6497, 6499, 660, 665, 670, 6711, 675, 690, 698, 699

• 7465, 7475, 7480, 7485, 7490, 7495, 7497

• 8450, 8460, 8470

Valmet & Valtra

• A72, A73, A82

Frequently Asked Questions (FAQs)

1. Is the Grammer Maximo Premium seat worth upgrading to?

Yes, the Grammer Maximo Premium is a high-end air suspension tractor seat designed to significantly improve comfort, reduce fatigue, and enhance operator productivity compared to standard mechanical seats.

2. Does this seat have a built-in air compressor?

Yes, it includes an integrated 12V air compressor, allowing automatic suspension adjustment without needing an external air supply.

3. Can this seat reduce back pain while operating machinery?

Yes, the combination of air suspension, adjustable lumbar support, and ergonomic cushioning helps reduce strain on the lower back, making it ideal for long working hours.

4. What types of tractors and machinery can this seat be fitted to?

This seat is suitable for:

• Agricultural tractors
• Front loaders
• Telehandlers
• Utility and municipal machinery

It is widely compatible with brands like John Deere, Massey Ferguson, New Holland, Kubota, and more.

5. Does the seat automatically adjust to the driver’s weight?

Yes, it features automatic weight adjustment (50–130 kg), ensuring optimal suspension performance for different operators without manual setup.

6. How does the air suspension improve ride quality?

The 100 mm suspension stroke absorbs shocks and vibrations from uneven terrain, providing a smoother and more stable ride compared to traditional seats.

7. Is the seat suitable for rough or off-road conditions?

Yes, it is specifically engineered for agricultural and heavy-duty environments, making it perfect for rough fields, construction sites, and uneven ground.

8. Does the Grammer Maximo Premium seat swivel?

Yes, it includes a 90-degree rotating turntable, allowing better visibility and ease of operation when working with rear or side-mounted equipment.

9. Are the armrests adjustable or removable?

The seat comes with fold-up armrests as standard, making it easier to get in and out of the cab while still providing support during operation.

10. What makes this seat comfortable for long hours?

Key comfort features include:

• Extra-wide 520 mm seat cushion
• Adjustable backrest tilt
• Lumbar support
• Air suspension system

Together, these features reduce fatigue and improve posture.

11. Does the seat require a specific power connection?

Yes, it requires a 12V power supply to operate the built-in air compressor.

12. Is the seat durable for everyday farm use?

Yes, it is built with high-quality materials and a protective suspension cover, ensuring durability in demanding agricultural and industrial conditions.

13. Can this seat improve operator safety?

Yes, it includes an operator presence switch, which enhances machine safety by detecting when the seat is occupied.

14. Is professional installation required?

In most cases, installation is straightforward, but professional fitting is recommended to ensure proper mounting and electrical connection.

15. What industries benefit most from this seat?

The seat is ideal for:

• Farming and agriculture
• Construction
• Grounds maintenance
• Municipal and utility services
