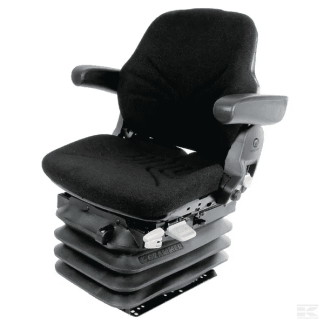

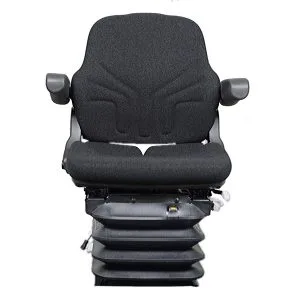

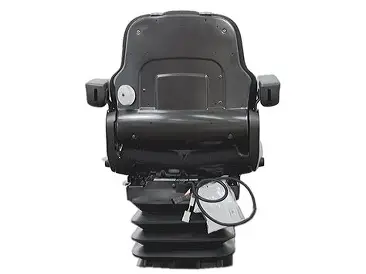

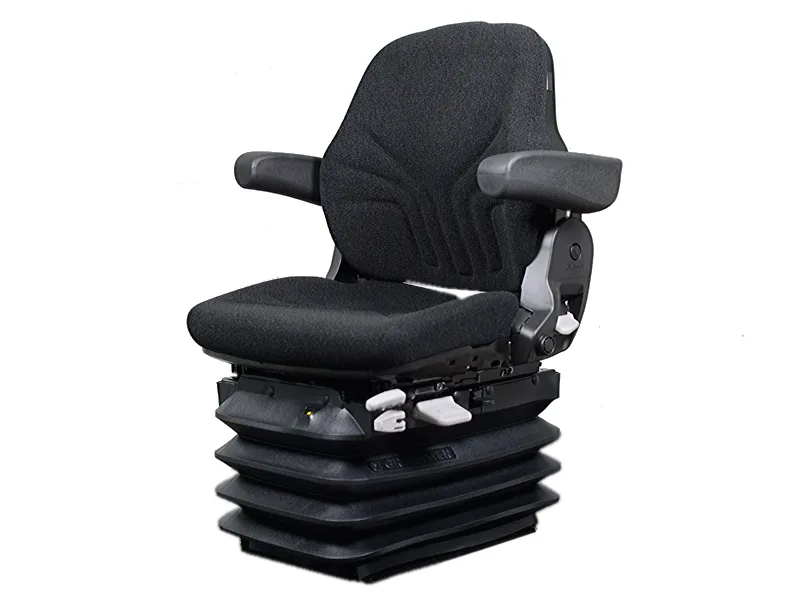

Grammer MSG 95G/721

description
~ Track width 260 mm
~ Air-sprung comfort seat with 12V compressor
~ Armrests, height-adjustable and foldable 65 mm x 270 mm
~ Suspension travel 100 mm
~ Weight adjustment, semi-automatic
~ Height adjustment 60 mm (air-assisted)
~ Longitudinal adjustment 210 mm
~ Longitudinal horizontal suspension
~ Mechanical lumbar support
~ Backrest inclination adjustment
~ Seat cushion width 480
~ With compressor
~ Foldable with armrests 65 mm x 270 mm
~ Without back extension

Details:
~ Air-sprung seat
~ With longitudinal horizontal suspension
~ Weight setting manually
~ Properties:
~ Seat cushion width 480 mm
~ Travel distance 100 mm
~ Height adjustment infinitely 60 mm, air-assisted
~ Length adjustment 210 mm
~ Backrest tilt adjustment
~ Weight setting 50 – 130 kg

The Grammer MSG95G/721 are suitable for Fendt Deutz Case John Deere Fiat Claas and many others

Applications
Agco Tractors: DT160, DT180, DT180A, DT200, DT200A, DT205B, DT220A, DT225, DT240A, DT250B, DT275A, LT70, LT75, LT75A, LT85, LT85A, LT90, LT90A, LT95A, RT95, RT100, RT100A, RT110A, RT115, RT120, RT120A, RT130, RT135, RT140A, RT145, RT150, RT155A

Allis Chalmers: 8610, 8630, 8745, 8765, 8775, 8785, 9130, 9150, 9170, 9190, 9435, 9455, 9630, 9635, 9650, 9655, 9670, 9675, 9690, 9695, 9735, 9745, 9755, 9765, 9815

Case Tractors: 110, 115, 120, 125, 130, 140, MX80C, MX90C, MX100, MX100C, MX120, MX135, MX150, MX17, MXU100, MXU110, MXU125, MXU130, MXU135, Puma 115, Puma 125, Puma 140, Puma 145, Puma 155, Puma 210

John Deere Construction Machines: 444G, 544E, 544G, 644E, 644G

John Deere Tractors: 5065M, 5075M, 5085M, 5095M, 5095MH, 5105M, 6100, 6100D, 6110, 6110D, 6110L, 6115D, 6120, 6125D, 6130D, 6140D, 6200, 6210, 6210L, 6215, 6220, 6230, 6300, 6310, 6310L, 6310S, 6320, 6320L, 6330, 6400, 6410, 6410L, 6410S, 6415, 6420, 6420L, 6430, 6500, 6510, 6510L, 6510S, 6520L, 6615, 6715, 6920, 7130, 7220, 7230, 7320, 7330, 7420, 7430, 7520, 7530, 7720, 7820

Kubota Tractors: M95, M105, M110, M120, M125, M5040, M5700, M6040, M6800, M7040, M7580, M8200, M8540, M8580, M9000, M9540, M7580, M4D-061, M4D-071, M5-091, M5-111, M6-101, M6-111, M6-131, M6-141

New Holland Tractors: 4835, 5635, 6635, 6640, 7635, 7740, 8240, 8340, 8360, 8560, T5060, T6030, T6070, T6080, T7030, T7040, T7070, TL70, TL80, TL90, TL100, TS90, TS100, TS110, TS115, TS115A, TS125A, TS130A, TS135A

AL157569, BL15037, AL114337, AL114212, AL154352, BL16318, AL150493, AL151640, AL175598, AL175597, AL175596, AL179254, AL175599, AL114336, AL114324, AL114834, BL16295

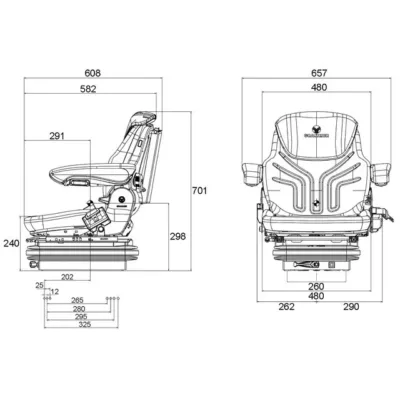

DIMENSIONS:
Air suspension with built-in 12V compressor Pneumatic height adjustment – 60mm Vertical spring stroke 100mm Semi-automatic weight adjustment Front/back adjustment range – 210mm Lumbar support Backrest inclination adjustment Foldable and adjustable armrest Longitudinal cushioning Lateral cushioning: Yes Backrest extension (headrest): Yes Mounting hole spacing: 260mm Upholstery: Black fabric Seat cushion width: 480mm

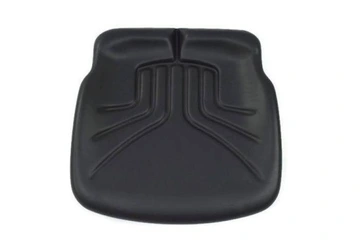

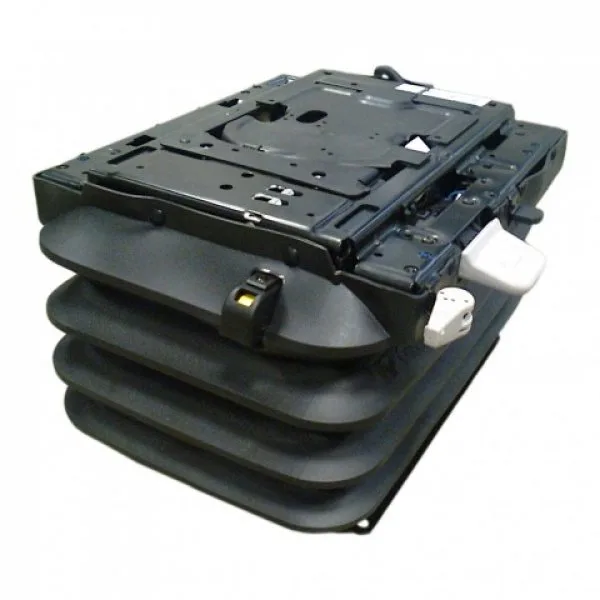

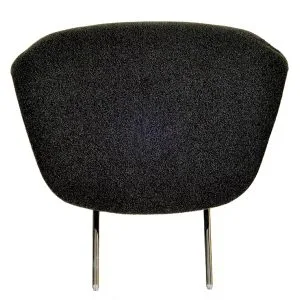

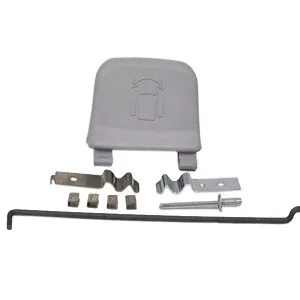

Also you can see below in our gallery our replacement cushions,suspension and armrests.

We supply seats and spare parts from the most respected manufacturers e.g. , Grammer, Isringhausen, Pilot,SEARS, KAB and provide full technical support not only for our product range but also for vehicle seats in general.

We hold large stocks of seats, spare parts and accessories enabling us to receive, process and dispatch your orders immediately.

Experts at your service,with over 40yrs of proven proficiency in seating industry.
