GRAMMER MSG85 mechanical suspension

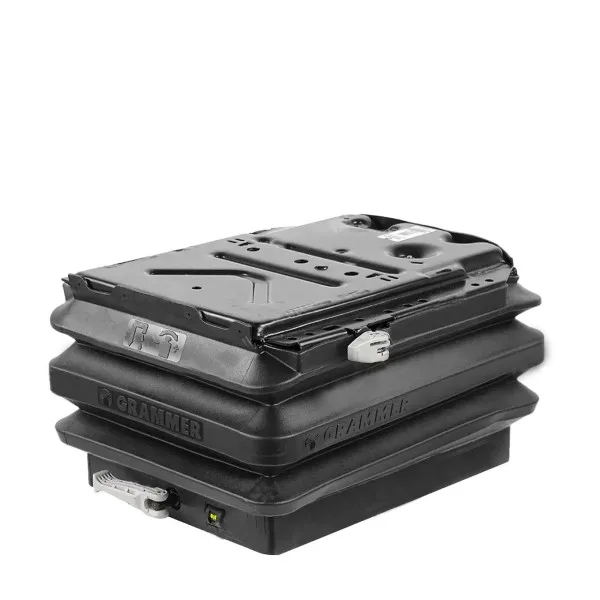

GRAMMER MSG85 Mechanical Suspension
The GRAMMER MSG85 Mechanical Suspension is a robust and reliable suspension unit designed to fit most seats in our range. It is ideally suited for tractors and agricultural machinery, offering excellent vibration damping, operator comfort, and durability in demanding working environments.
With a 100 mm suspension stroke and wide weight adjustment range, the MSG85 allows operators to fine-tune settings for optimal comfort and support throughout long working hours.
Key Features
-
Mechanical suspension with 100 mm travel
-
3-step height adjustment
-
Weight adjustment range: 50–120 kg
-

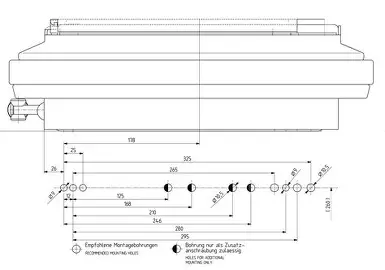

Bottom plate mounting centres: 260 mm (across)
-
Seat top mounting centres: 330 mm (across)
-
Manual weight adjustment via control handle
-
Heavy-duty, proven GRAMMER design
Suspension Design Details

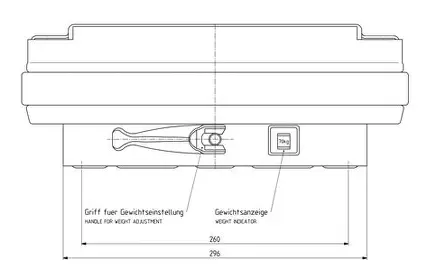

The GRAMMER MSG85 mechanical suspension features a weight control handle with a toggle mechanism, which conveniently swings away for easy access and adjustment. This allows precise mechanical fine-tuning of the suspension to suit the operator’s weight, ensuring consistent comfort and support.
This standard suspension configuration does not include an isolator, which is typical for this suspension type and contributes to its robust, low-maintenance design.
Applications
-
Agricultural tractors
-
Agricultural and off-road machinery
-
Compatible with most GRAMMER seat models
-
Suitable for a wide range of heavy-duty equipment
Compatible Tractor Series
5400 Series
5425 Tier 3, 5435 Tier 3, 5410 Tier 3, 5420 Tier 3, 5425 Tier 2, 5430 Tier 3, 5435 Tier 2, 5440 Tier 3, 5445 Tier 2, 5445 Tier 3, 5450 Tier 3, 5455 Tier 2, 5455 Tier 3, 5460 Tier 2, 5460 Tier 3 Perkins, 5460 Tier 3 SISU, 5465 Tier 2, 5465 Tier 3 Perkins, 5465 Tier 3 SISU, 5470 Tier 2, 5470 Tier 3, 5475 Tier 3 Perkins, 5475 Tier 3 SISU, 5480 Tier 3
5600 Series
5608, 5609, 5610, 5611 DYNA 4, 5611 DYNA 6, 5612 DYNA 4, 5612 DYNA 6, 5613 DYNA 4, 5613 DYNA 6
5700 Series
5708 DYNA 4, 5709 DYNA 4, 5709 DYNA 6, 5710 DYNA 4, 5710 DYNA 6, 5711 DYNA 4, 5711 DYNA 6, 5712 DYNA 4, 5712 DYNA 6, 5713 DYNA 4, 5713 DYNA 6
5S Series
5S.105 DYNA 4 / DYNA 6, 5S.115 DYNA 4 / DYNA 6, 5S.125 DYNA 4 / DYNA 6, 5S.135 DYNA 4 / DYNA 6, 5S.145 DYNA 4 / DYNA 6
6100 / 6200 / 6400 / 6600 / 6700 / 6S Series
(Full compatibility list retained as supplied)
7400 / 7600 / 7700 / 7S Series
(Full compatibility list retained as supplied)
8100 / 8200 / 8400 / 8600 / 8700 / 8S Series
(Full compatibility list retained as supplied)
Why Choose Us?
With over 40 years of proven expertise in the seating industry, our team is committed to providing the right seating solutions for your machinery. We offer expert advice, quality products, and reliable after-sales support.
