Highlander Pro Air seat

1,300.00 ex vat

Highlander Pro Air seat is fitted with air suspension and 24-volt compressor is equipped with an automatic positioning system (APS) and an adjustable shock absorber, an important element when the machine is used by several operators. Highlander Pro Air seat offers excellent comfort thanks to its various adjustments such as the depth of the seat and its inclination, also equipped with pneumatic lumbar support.The Highlander Pro replaced the original seat fitting on to the OEM plinth between the joystick pods. With its adjustable damper, fore/aft horizontal suspension, it assists the driver with the uneven terrains and back and forth movements that is typical work for an excavator.

Sitting comfortably and safely in your construction vehicle, where you likely spend many waking hours, is a given for us at Seat Systems. By choosing a driver’s seat from us, you are selecting a high-quality seat designed for both you as a driver and your construction vehicle, such as a larger truck, etc. Sitting correctly and comfortably can help prevent and, in many cases, even avoid physical discomfort such as a stiff neck, aching back, slouched shoulders, and other strain-related injuries. Give yourself the best possible work equipment for an easier and more ergonomic workday.

Affordable seats
With us, you can buy driver’s seats for your construction vehicles that are both comfortable and exclusively selected. Considering the quality and comfort that our seats offer, you get a top-tier seat at a great price. An ergonomically adapted driver’s seat is also an affordable investment to keep your body fresh and flexible.

Customize your own driver’s seat
Pick and choose from all the features you can imagine. Customize your driver’s seat in your construction vehicle so that it fits you like a glove—after all, you’ll likely be spending many hours in it, so it’s best to get it right from the start. For us, the first priority is always ensuring that you sit ergonomically correct and comfortably. After that, you can add additional features such as air suspension, a built-in compressor, an alarm contact, a headrest, and armrests for a more luxurious feel.

Seat Systems is your partner for excavator operator seats
With over 30 years of experience,Seat Systems is a reliable and trusted supplier of operator seats for excavators and other construction vehicles. We collaborate with world-leading manufacturers like ISRI,GRAMMER,SEARS just to name a few to ensure that we always offer the best quality and ergonomics on the market. Our team of experts helps you select the right operator seat, ensuring you get a solution that will last for many years of daily use.

Operator seat for excavators that makes a difference
An operator seat for excavators from Seat Systems combines high quality, durability, and ergonomics to create the optimal working environment. We understand that an operator seat is one of your most important tools, which is why we have carefully selected a range that fits many different types of construction machinery. A good operator seat for excavators is an investment that pays off in improved health, efficiency, and comfort.
We have Seats for Most Machines!
Getting the right seat for your digger, bulldozer, grader, loader, construction machinery or tractor is no problem for us here at Seat Systems,We provide a wide range of seating options to suit all makes and models of machinery, forklifts, agricultural equipment and cranes including:
Hyundai, John Deere, Hitachi, Kobelco, Hyundai, Massey Ferguson, New Holland, Same, Case, JCB, Doosan, Sumitomo, Caterpillar, Grove, Komatsu, Terex, Liebherr, Tadano Mitsubishi, Hyster, Kubota.

Make Enquiry

Highlander Pro Air seat
Standard features

~ Pneumatic suspension 24V
~ Side control
~ Suspension travel 120 mm
~ Height adjustment 80 mm
~ Weight adjustment 50 – 135 kg
~ Document box
~ Fore/aft isolator
~ Backrest adjustment
~ Mechanical lumbar support
~ Adjustable damper
~ Slide rail travel 210 mm
~ Adjustable armrests
~ Headrest
~ Seat depth adjustment
~ Seat tilt adjustment
~ Deluxe 520 mm wide seat cushion
~ Deluxe fabric

Options
~ Pneumatic suspension 12V
~ Seat belts
~ Heater (3 stages)
~ Seat with front control

Applications
Case Machines: 9007B, 9050B, 9060B, CX75SR, CX80, CX130, CX135SR, CX160, CX210, CX210LR, CX210N, CX225S, CX240, CX240LR, CX290, CX330,CX350, CX460, CX800.

Cat Part Numbers: 100-7677, 4I-7052, 6I-5381, 9U4365

Cat Machines: 215D, 225D, 235D, 245B, 245D, 311L, 312L, 315L, 320L, 322L, 330L, 350L, 375L (These are for “L” models only no joysticks attached.

Replaces Doosan/Daewoo Part Numbers:

Doosan/Daewoo Machines: DX140, DX160, DX170, DX180, DX190, DX210, DX220, DX225, DX230, DX255, DX300, DX340, DX350, DX420, DX480, DX520, DX700, Solar 140V, Solar 180V, Solar 210V, Solar 220V, Solar, 225V, Solar 255V, Solar 280V, Solar 290V, Solar 300V, Solar 340V, Solar 500V

Replaces Hiatchi Part Numbers: 4342226

Hitachi Machines: EX120-5, EX160-5, EX200-5, EX230-5, EX270-5, EX300-5, EX330-5, EX450-5, EX550-5, EX750-5 (verify no controls attaching to seat/suspension)

Replaces Kobelco Part Numbers: YN25MU0002F1, YN25M00008F2, YN25M00059F1

Kobelco Machines: Excavators; ED150, ED150-2, ED160, SK70SR, SK80, SK75SR, SK100 IV, SK120 IV, SK120 V, SK135SR, SK135SR-2, SK140SR, 140SR-3, SK140SR-5, SK160 IV, SK160 Dynamic Acera, SK170-8, SK170-9, SK200 IV, SK200 Dynamic Acera, SK210-6, SK210-8, SK210-9, SK215SR, SK220 IV, SK230SR-3, SK235, SK235SR-2, SK250-6, SK250 Dynamic Acera, SK260, SK260-9, SK270 IV, SK270 V, SK290LC, SK290 Dynamic Acera, SK295-9 SK330, SK330 Dynamic Acera, SK350LC, SK350LC-8, SK350-9, SK400 IV, SK480, SK480 Dynamic Acera, SK485, SK500-9, SK850. Graders; GD555-3, GD655-3, GD655-5, GD655-6, G675-3, GD675-5

Replaces Komatsu Part Numbers: 20Y-57-31100, 20y-57-31400, 22B-57-11400, 23B-57-31201, 23B-57-31301, 208-57-71100, 208-57-71101, 208-57-71102

Komatsu Machines: Excavators; PC120-6, PC120-6, PC130-7, PC138US-2, PC160-6, PC160-7, PC200-6, PC200-7, PC210-6, PC210-7, PC220-6, PC220-7, PC228US-3, PC240-6, PC240-7, PC270-7, PC300-6, PC300-7, PC308US-3, PC350-7, PC400-6, PC400-7, PC450-6, PC450-7, PC600-6, PC600-7. Graders; GD555-3, GD655-3, GD655-5, GD675-3, GD675-5. Loaders; WA100-3, WA120-3, WA180-3, WA250-3, WA320-3, WA380-3, WA450-3, WA500-3, WA600-3

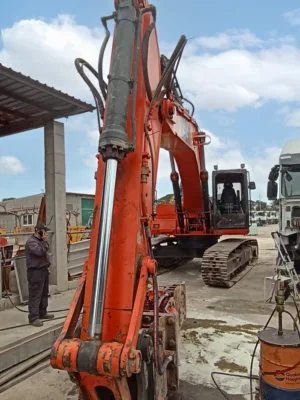

You can see in our gallery below the Highlander Pro Air seat fitted onto a Hitachi machine.

We stock a wide range of seating for Excavators to fit many makes and models such as Hitachi, Caterpillar, Kobelco, Case, Komatsu, Takeuchi, Hyundai and more. If you can’t find the seat you are looking for just pick up the phone or drop us an email.

We are on hand to offer you the very best advice for your particular Excavator seat requirements.
