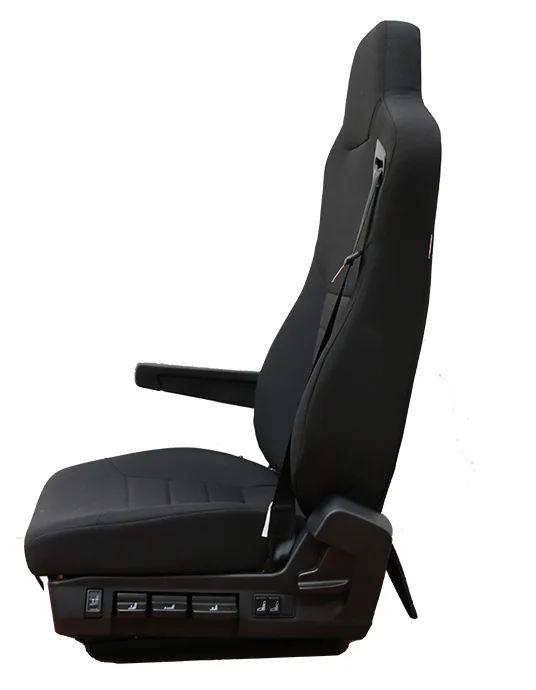

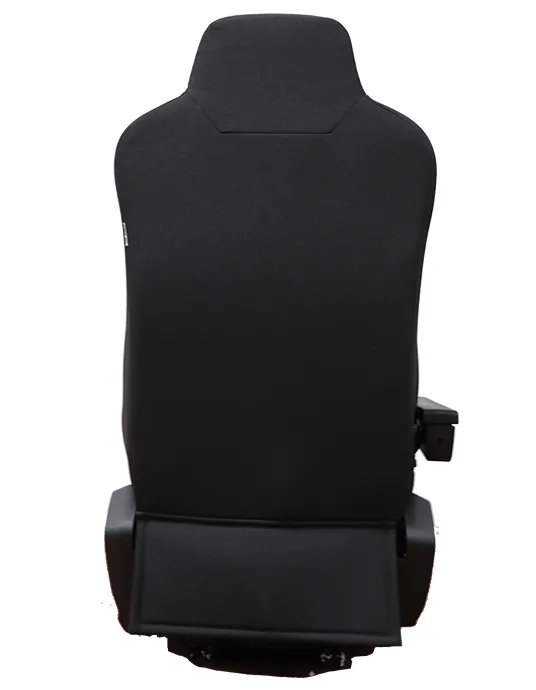

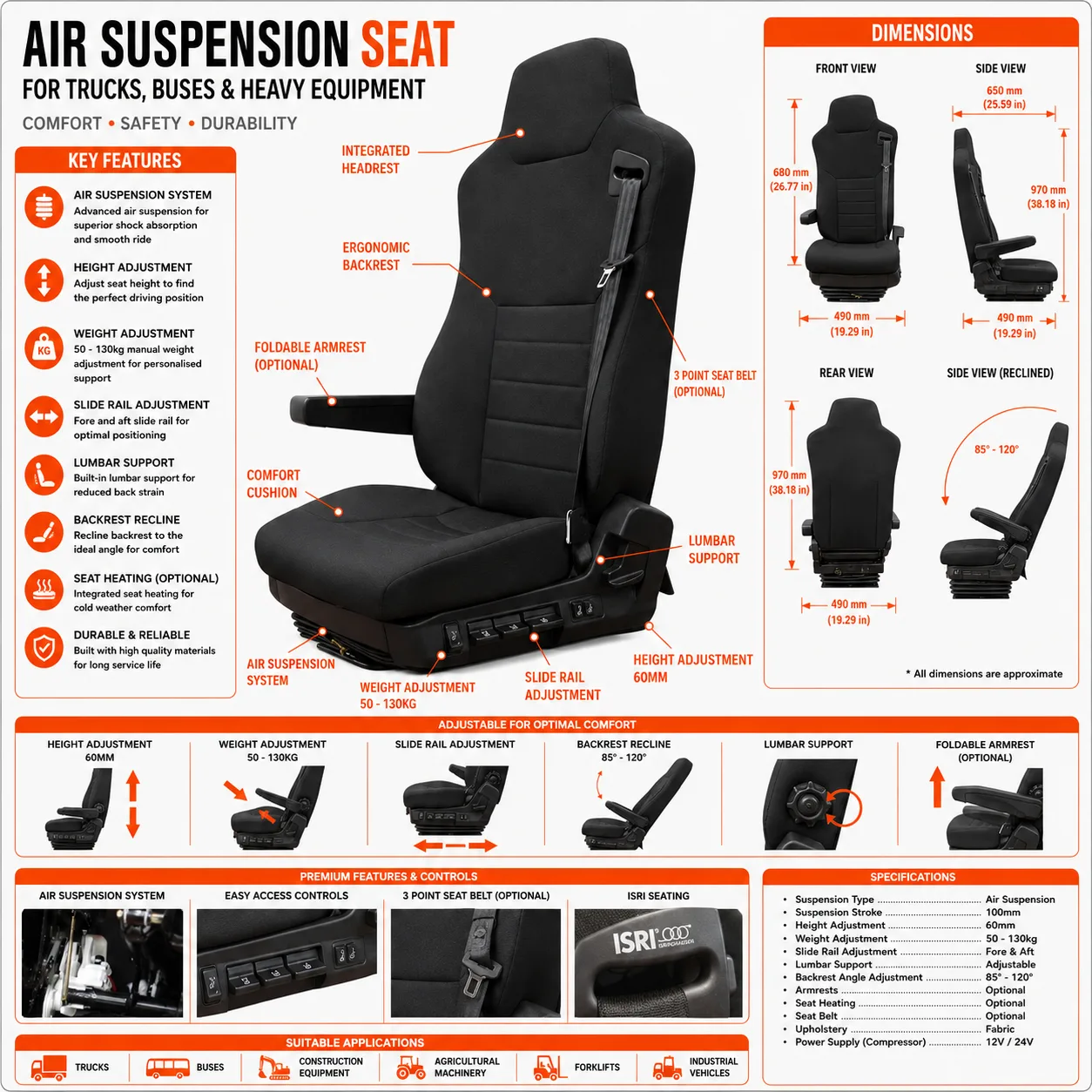

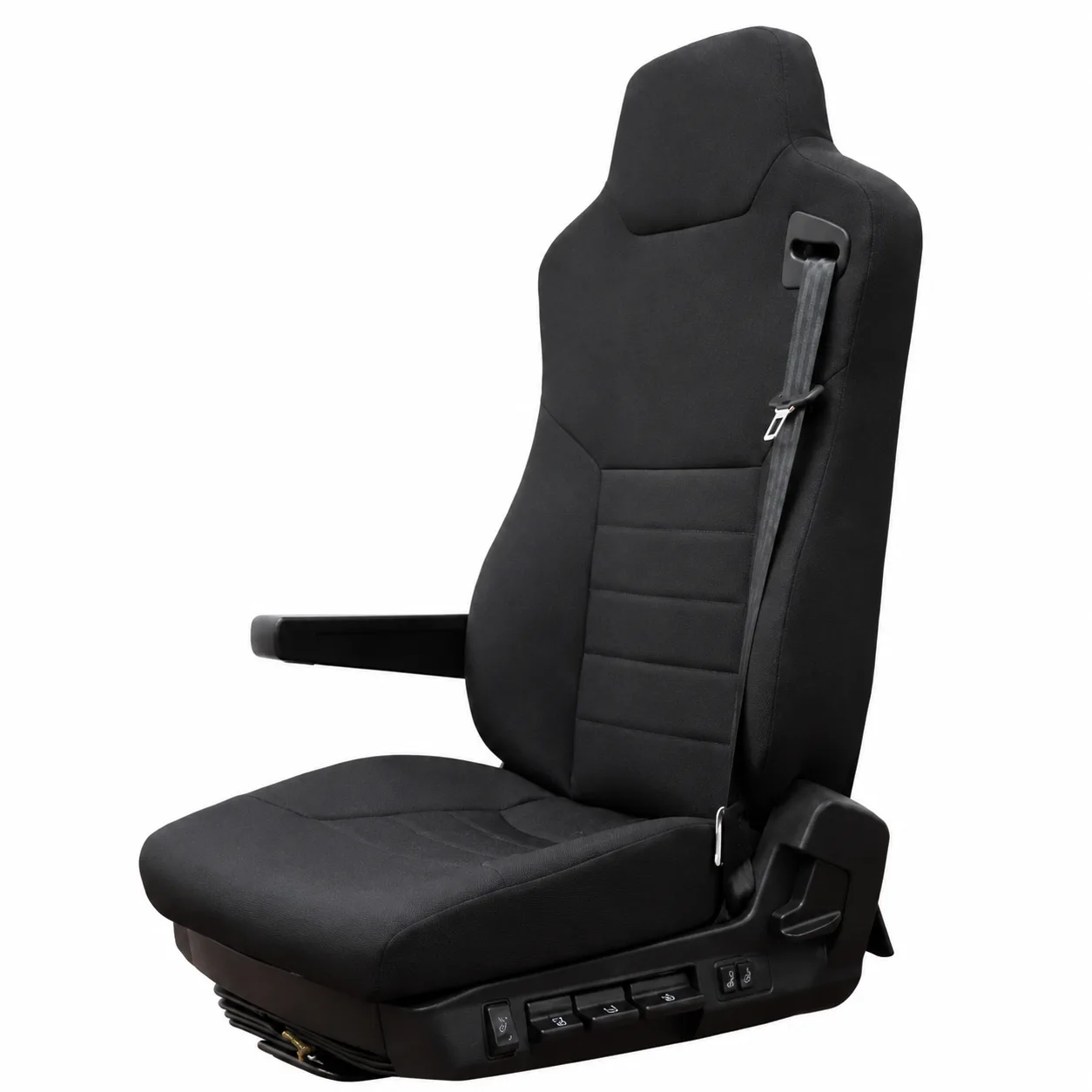

ISRI6860 pneumatic suspension system
Discription;
~ Horizontal adjustment: double locking , stroke 230mm（10 mmx23）
~ Front tilt adjustment: adjust range +0°~-11°
~ Height adjustment(eight steps adjustable); adjust range 0～100mm
~ Quick release adjustment
~ Vertical shock absorber adjustment (damp infinitely adjustable)
~ Seat cushion adjustment: stroke 60mm (10mmx6)
~ Backrest adjustment: have automatism tooth function, 82°+47°(design angle 105° )
~ Integrated Pneumatic-system lumbar support
~ Seat size（length x height x width） 615mmx1100mmx540mm
~ Connect size（L/RxF/B）216mmx320mm (280)
Features;
~ Horizontal adjustment with double locking tracks
~ Weight adjustment up to 150KG
~ Height / rake adjustable
~ Backrest adjustable
~ Vertical shock absorber adjustment (damp infinitely adjustable)
~ Quick release adjustment
~ Imported NTS luxury pneumatic suspension system
~ Suspension cover

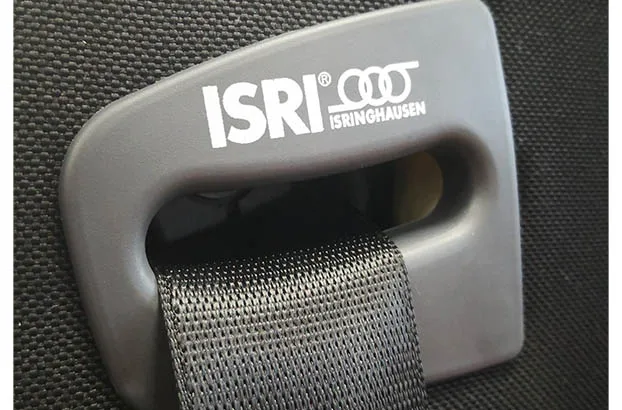

~ Integrated with 3 point safety belt

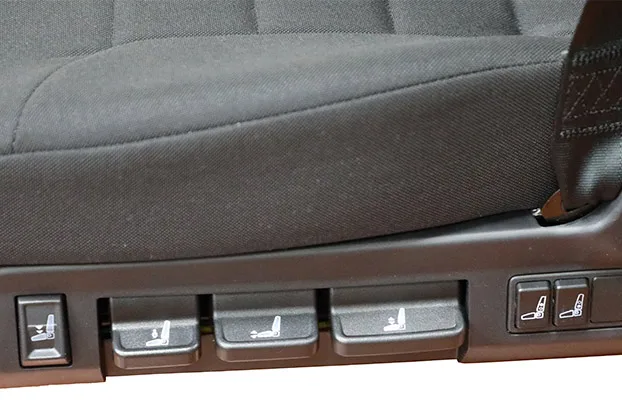

~ Integrated controled handles
~ Integrated headrest,high backrest
Seat Systems Ltd is Ireland’s leading seat supplier for all makes of Truck / Lorry. We stock a wide range of original and replacement seats and seat spare parts for seats fitted to MERCEDES BENZ, MAN, VOLVO, DAF, HINO, SCANIA, IVECO, RENAULT and more…
We supply seats and spare parts from the most respected manufacturers e.g. , Grammer, Isringhausen, Pilot & KAB and provide full technical support not only for our product range but also for vehicle seats in general.
We hold large stocks of seats, spare parts and accessories enabling us to receive, process and dispatch your orders immediately.
Experts at your service,with over 40yrs of proven proficiency in seating industry.
