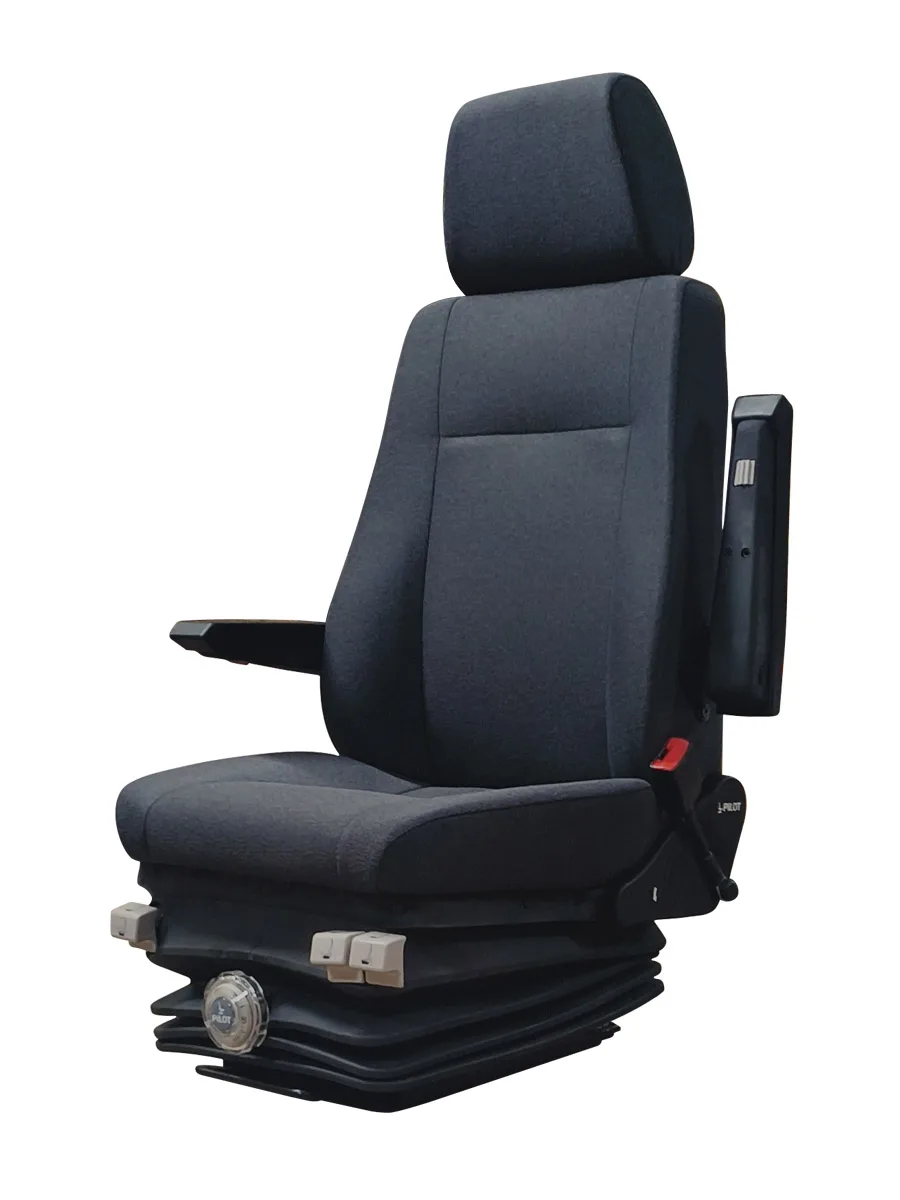

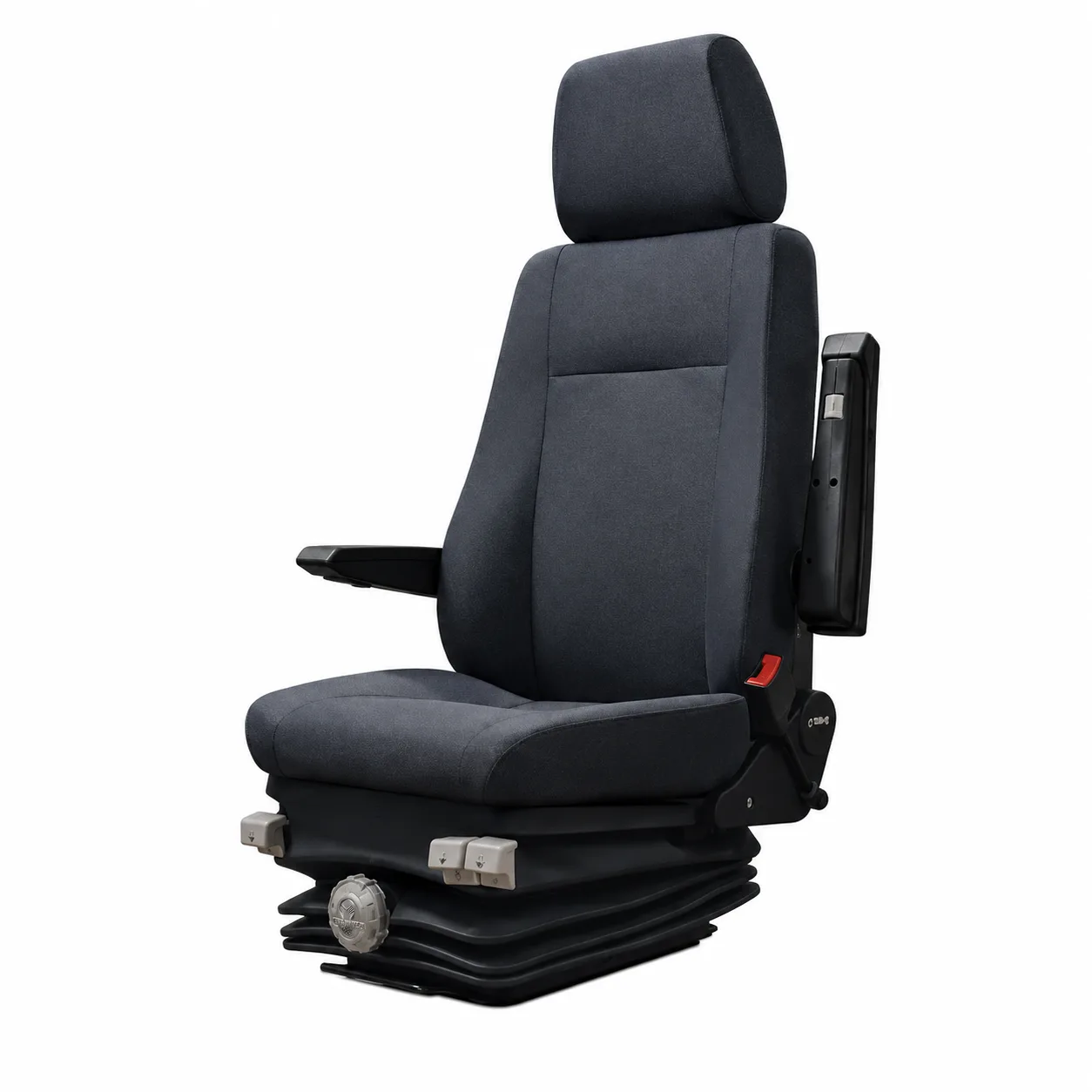

Komatsu Wheel Loader Seat
Komatsu wheel loader operator seat is a premium seat with a reinforced mechanical (spring) shock absorption system for excavators, cranes, quarry dump trucks and road construction equipment used in particularly construction machinery, agricultural machinery, special vehicle like, backhoe seat ,bulldozer seat, wheel loader seat, mining seat.
We can provide the seat with suspension ,the mechanical suspension seat and air suspension seat，180 Rotation seat.. You can choose low backrest, mid backrest or high backrest and a headrest.Ergonomically designed back support with adjustable backrest for added comfort and versatility and backrest extension for extra backrest height. Seat cushion depth/tilt and angle adjustment for custom fit. Adjustable armrests can be flipped up and out of the way when not in use,Adjustable mechanical lumbar support to help prevent lower back pain.
The wheel loader swivel seat with control pod housing for wheel loader to ensure you are riding in maximum comfort while you’re busy at work. The seat frame have the air conditioner air outlet and the push-pull drawer, it can install the electric control system, like relays and insurance.
Wheel loader seats come in all sizes, brands, and configurations. We carry a wide variety to fit almost all types of loaders from Caterpillar seats, to John Deere seats with bucket controls, to Komatsu seats with joystick steering; we have the right loader seat.
Features:
~ Reinforced mechanical (spring) shock absorber system
~ Vertical shock absorption range 80 mm
~ Height adjustment up to 60 mm
~ Auxiliary shock absorber
~ Seat tilt adjustment function (tilt of the entire upper part of the seat relative to the suspension, independent of the separate adjustment of the backrest angle)
~ Reinforced longitudinal adjustment guides (“slides”) on ceramic bearings with two-sided position fixation. The “slides” are located below, under the suspension.
~ Mounting width 280 mm (mounting the suspension to the base)
~ Suspension stiffness adjustment for operator weight from 50 to 150 kg
~ Fabric upholstery (jacquard)
~ Backrest with adjustable position
~ To reduce back fatigue and provide greater comfort, the backrest is equipped with adjustable lumbar support (mechanical adjustment).
~ The pillow is adjustable in length (the pillow can be pulled forward relative to the backrest; the adjustment range is 60 mm)
Optional
~ Height adjustable headrest
~ Armrests with adjustable angle
~ Seat belt – three-point,
~ Rotating device (360 degrees

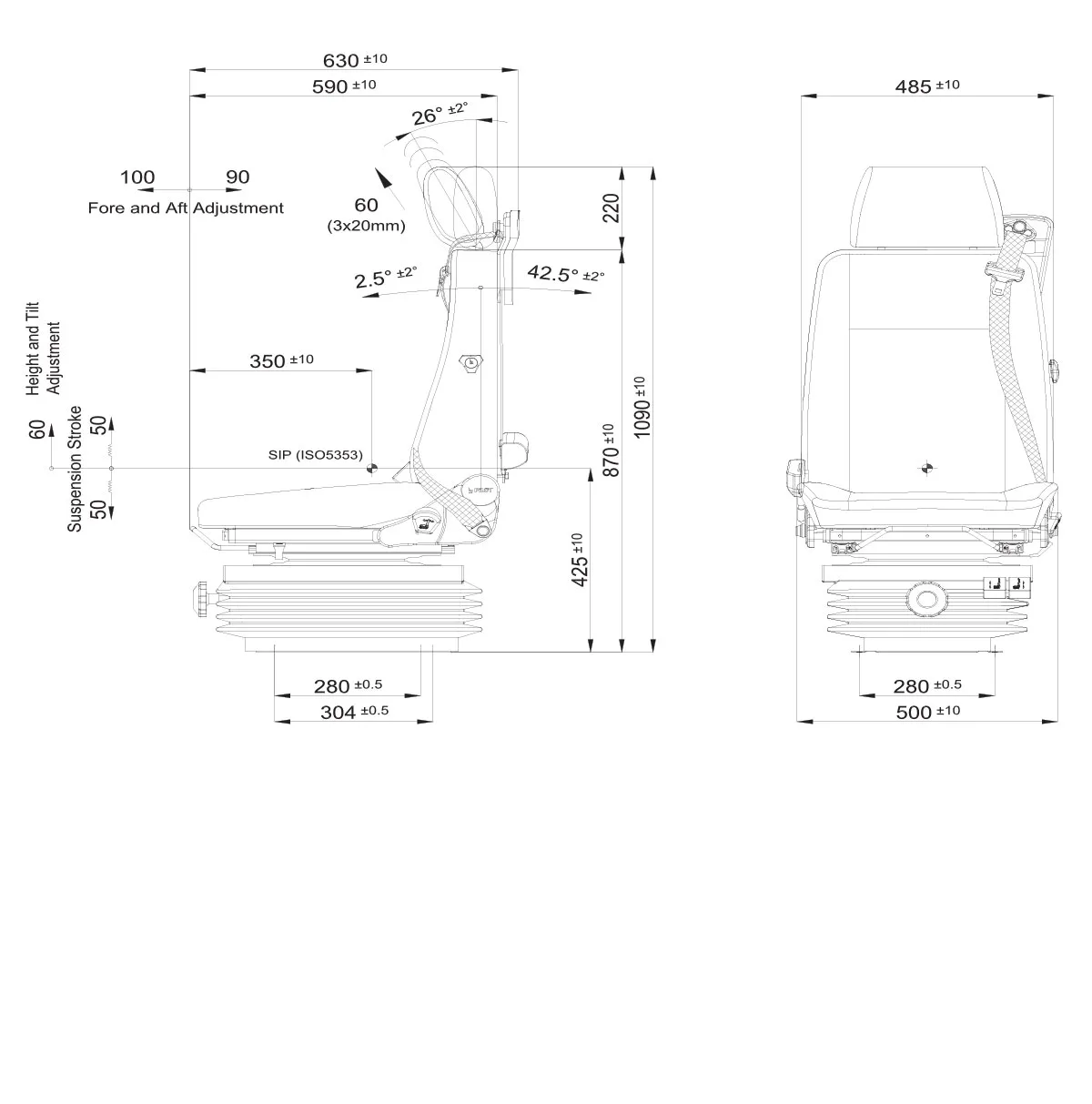

Mass and dimensions (weight / L x W x H): 40 kg / 590 x 465 x 1095 mm
Applications
Bobcat Machines: E32, E32M, E35, E42, E45, E50, E55
Case Part Numbers: 47918474, 47918479.
Case Machines: 550G, 650G, 850G, 1150G, 550H, 650H, 750H, 850H, 1150H, 650K, 650L, 750K, 750L, 850K, 850L, 1150K, 1650L, 650M, 750M, 850M, 1150M, 1650M, 2050M.
Caterpillar Machines: Articulated Trucks; D250D, D250E, D300D, D300E, D350D, D350E, D400D, D400E. Crawler Loaders; 939C, 943, 953, 963, 973, 953B, 963B, 953C, 963C, 973C. Dozers; D3B, D6D, D3C, D3G D4C, D4G, D4H, D5C, D5G, D5H, D6H, D6R, D7H, D7R, D8R, D8N, D8R, D9N, D9R, D10N, D10R. Graders; 120G, 12G, 130G, 140G, 14G, 16G, 120H, 12H, 135H, 140H, 143H, 14H, 160H, 163H, 16H. Rollers; CP-433C, CS-431C, CS-433C, CS-531C, CS-533C, CS-563C, CS-573C, CS-583C. Wheel Loaders; 914G, 924G, 924GZ, 928F, 928G, IT14G, IT28G, IT14G2, IT38G, IT38G II, IT62G II, 924H, 930G, 938G, 938G II, 950G II, 962G II, 966G II, 972G II
Doosan Machines: Loaders; DL160, DL200, DL250, DL300, DL420, DL450, DL500, DL550
John Deere Machines: Dozers; 450G, 650G, 450H, 450J, 550H, 550J, 650H, 650J, 700H, 700J, 750H,750J Graders; 344G, 544E, 544G, 644E, 644G. Graders; 570B, 670B, 672B, 770B, 772B, 670C, 672C, 770C, 772C, 670D, 672D, 770D, 772D, 870D, 872D. Loaders; 344G, 544E, 544G, 644E, 644G, 444H, 544H, 624H, 644H, 744H, 244J, 244K, 304J, 304K, 344J, 344K, 444J, 544J, 624J, 644J, 724J, 744J, Skidders; 548E, 648E, 548G, 648G
Komatsu Machines: Dozers; D31EX-20, D31PX-20, D31EX-21, D31PX-21, D31EX-22, D31PX-22, D37EX-21, D37PX-21, D39EX-21, D39PX-21, D41E-6, D41P-6, D37EX-22, D37PX-22, D39EX-22, D39PX-22. Graders; GD555-3, GD655-3, GD655-5, GD675-3, GD675-5.
Kubota Part Numbers: R5615-39000, R5615-39002, R5615-39500
Kubota Machines: Mini excavators; KX033-4, KX035-4, KX040-4, KX055-4, KX057-4, KX080-3, KX080-4. Skidsteers; SSV65, SVL65-2, SSV775, SVL75-2, SVL90, SVL90-2, SVL95-2. Wheel Loaders; R530, R540, R630, R640.
Hitachi Machines: Loaders; ZW100-6, ZW120-6, ZW180-6.
Takeuchi Machines: Mini Excavators; TB125, TB135, TB138, TB145, TB153, TB180, TB228, TB230, TB235, TB240, TB250, TB260, TB280, TB285, TB290, TB1140. Skid Steers; TL6, TL8, TL10, TL10V2, TL12, TL12V2, TL120, TL126, TL130, TL140, TL150, TL220, TL230, TL240, TL250.
Volvo Machines Loaders: L30B, L35B, L40B, L45B, L50B, L50E, L70C, L90B, L90C, L120B, L120C, L150B, L150C, L30G, L35G, L45G, L50F, L50G, L60E, L60G, L70D, L70E, L70F, L70G, L90D, L90E, L90F, L90G, L110E, L110F, L110G, L150D, L150E, L150F, L150G, L180D, L180E, L180F, L180G, L220D, L220E, L220F, L220G, L250G, L330C, L330D, L330E, L350F
