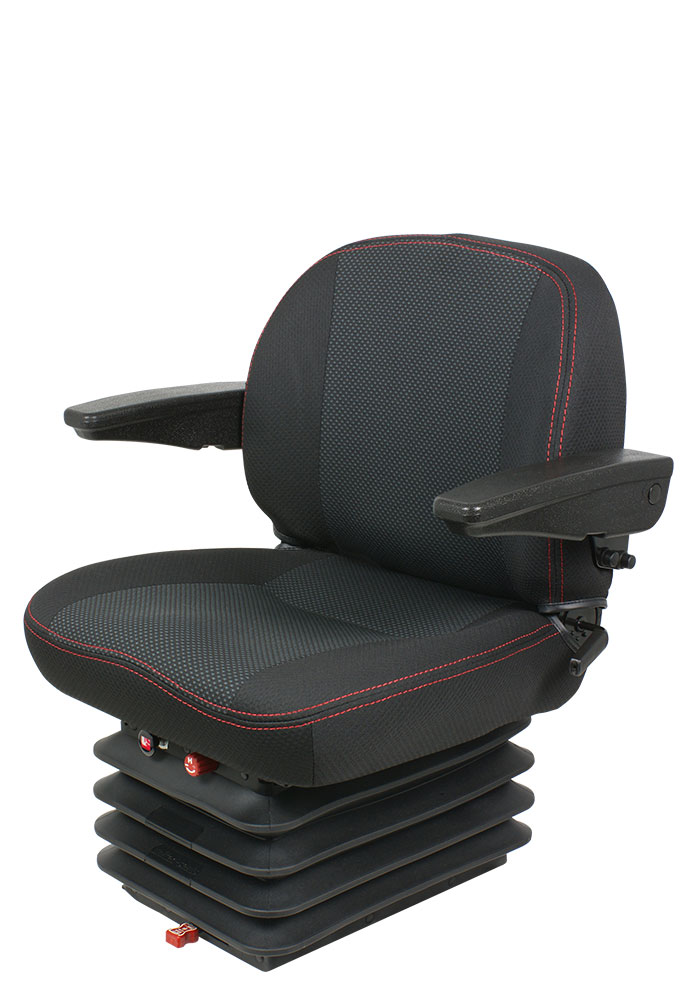

LGV84/C6 Air suspension seat
The LGV84/C6 Air Suspension Seat is a compact, ergonomically designed seating solution built to enhance operator comfort and reduce fatigue in demanding work environments. Featuring an integrated 12V compressor and semi-automatic weight adjustment, this seat delivers smooth suspension performance and customizable support for a wide range of users. Its durable construction and versatile options make it suitable for various industrial and commercial applications.
Key Features
- Compact Air Suspension System with integrated 12V compressor
- Semi-Automatic Weight Adjustment for personalized comfort
- Weight Range: 50–130 kg
- Suspension Travel: 100 mm for effective shock absorption
- Height Adjustment: 80–140 mm
- Slide Rail Travel: 150 mm for flexible positioning
- Horizontal Suspension for improved ride stability
- Durable UnitedSeats Fabric Trim
- Seat Width: 510 mm for operator comfort
- Adjustable Backrest for ergonomic support
- Armrests for added comfort during long operation hours
Optional Features
- 24V or 48V Compressor Options
- Two-Tone or Wild Heather PVC Upholstery
- Air Lumbar Support for enhanced lower back comfort
- Seat Belt for added safety
- Contact Switch for operational integration
- Heating System (12V, 24V, or 48V options)
- Turntable Base for increased mobility and access
Applications
The LGV84/C6 seat is ideal for a wide range of machinery and vehicles, including:
- Forklifts
- Construction equipment
- Agricultural machinery (tractors, harvesters)
- Industrial vehicles
- Material handling equipment
- Utility and maintenance vehicles
Its compact design and adaptable features make it especially suitable for equipment with limited cabin space.
Frequently Asked Questions (Q&A)
Q1: What is the weight capacity of the seat?
A: The seat supports operators weighing between 50 kg and 130 kg.
Q2: Does the seat include a built-in compressor?
A: Yes, it comes with a 12V integral compressor, with optional 24V or 48V versions available.
Q3: Can the seat height be adjusted?
A: Yes, the height can be adjusted between 80 mm and 140 mm.
Q4: Is lumbar support available?
A: Yes, air lumbar support is available as an optional feature.
Q5: What type of suspension system does it use?
A: It features a compact air suspension system with horizontal suspension for improved comfort and stability.
Q6: Can the seat be heated?
A: Yes, heating elements are available in 12V, 24V, and 48V options.
Q7: What industries is this seat best suited for?
A: It is ideal for construction, agriculture, material handling, and industrial vehicles.
Q8: Is the seat customizable?
A: Yes, multiple options such as upholstery, compressors, lumbar support, and accessories allow for customization.
