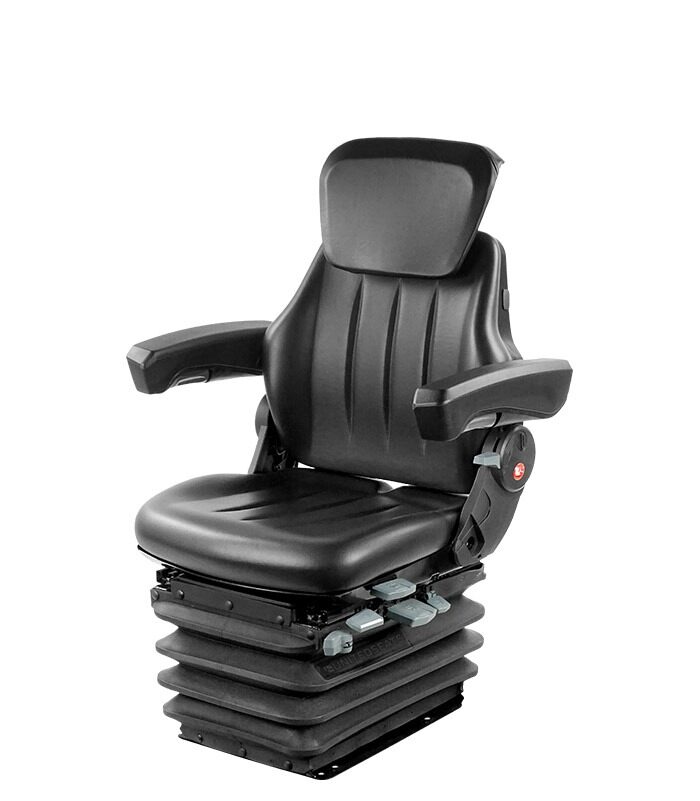

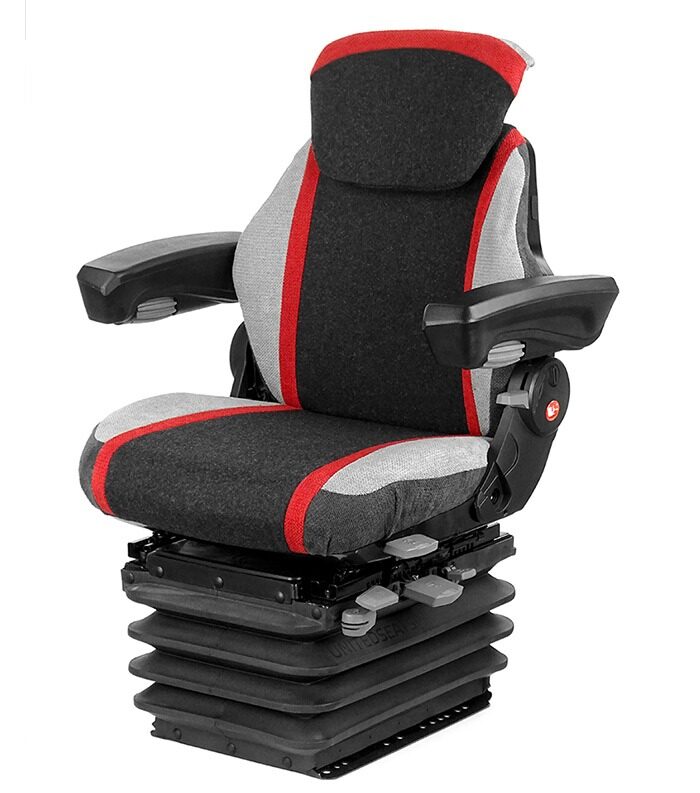

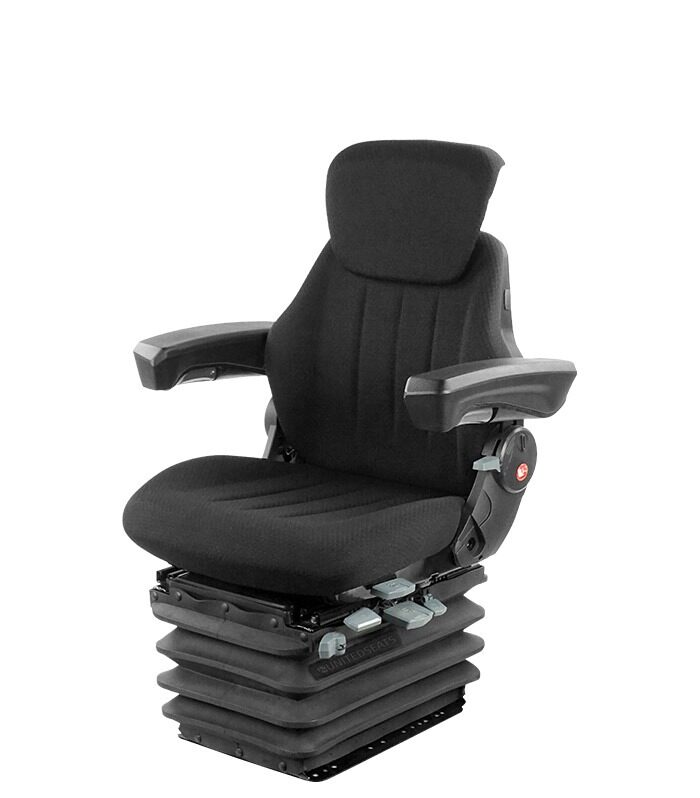

This is a low back Tractor Air Seat,
suitable for fitment to a wide range of Combine Harvesters and other Agricultural vehicle applications.
Featuring a swivel turntable that is useful when engaged in hedging and ploughing work, allowing the seat to be positioned in a more comfortable operating position during these jobs.
With multiple adjustment points, this seat also allows a greater amount of operator comfort to be achieved.
Reduction of operator fatigue makes for safer machine operation and operator welfare.

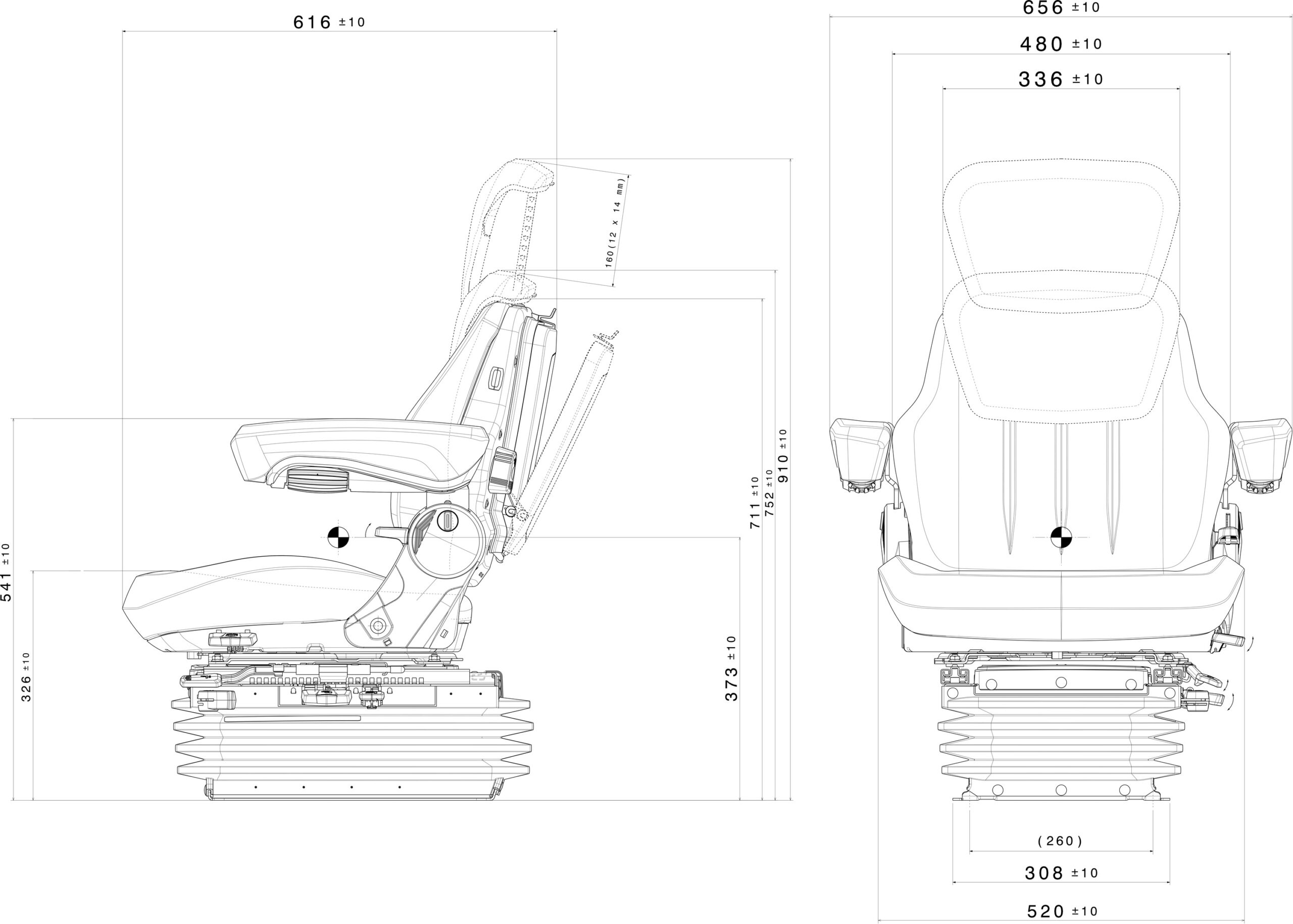

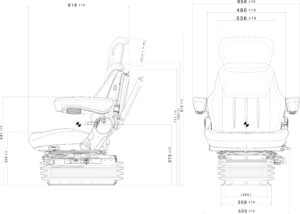

With a front mounting footprint of only 260mm, it will fit many different vehicles.
The mounting brackets feature a variety of mounting holes which help with ease of fitting.
Features
Mounting brackets as related parts are also available which help reduce the need to drill new seat mounting holesPneumatic suspension 12V with 120 mm suspension stroke
Height adjustment 80 mm
Weight adjustment 50 – 135kg
Document box
Horizontal suspension
Backrest adjustment
Mechanical lumbar Support
Adjustable damper
Slide rail travel 210 mm
Adjustable armrests
Backrest extension
Turn table 20°/20° Swivel
