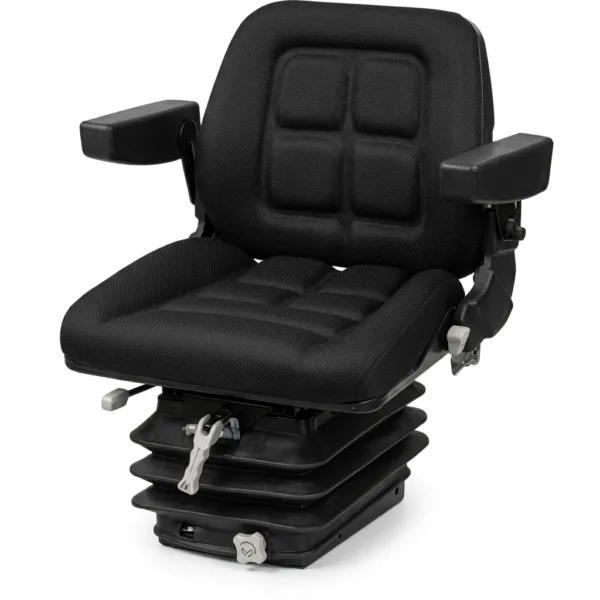

Universal Teleporter Seat
Basic mechanically suspended seat with a narrow suspension design, ideal for tight fitment applications.
Suitable for compact loaders, telehandlers, and rollers.
This mechanically suspended driver’s seat features a 3-step height adjustment and manual weight adjustment to suit a wide range of operators. The seat top includes an adjustable backrest angle and mechanical lumbar support, ensuring comfort and ergonomic support.
Available in fabric or PVC upholstery, this seat delivers optimum operator comfort while occupying minimal installation space.
Universal Teleporter Seat
Key Features:
~ Narrow mechanical suspension design
~ 80 mm suspension travel
~ Manual weight adjustment: 50–130 kg
~ Adjustable mechanical lumbar support
~ Reclining backrest
~ Mechanical height adjustment: 3 positions (total 60 mm)
~ 180 mm longitudinal (fore/aft) adjustment
~ Optional Extras
~ Headrest

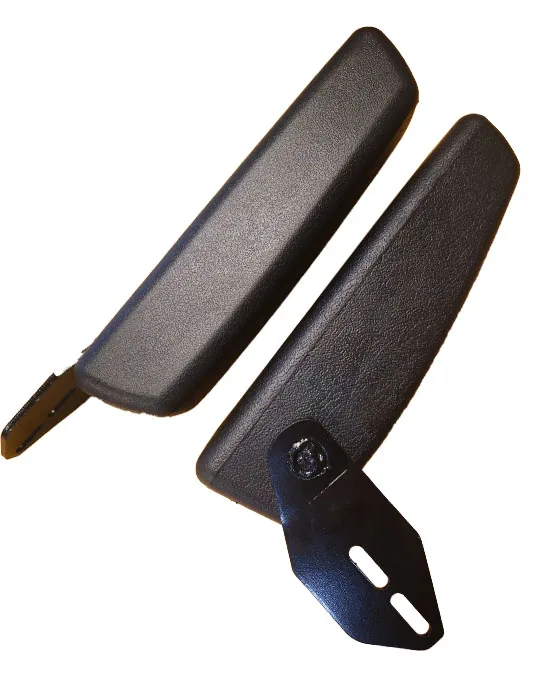

~ Foldable armrests
Applications & Compatibility
Replaces Caterpillar Seat Part Numbers
258-4055
476-1133
526-4160
526-8513
Compatible Caterpillar Machines (Skid Steers & Loaders):
226D, 226D3, 232D, 232D3, 236D, 236D3, 239D, 239D3, 242D, 242D3,
246C, 246D, 246D3, 249D, 249D3, 256C, 257D, 257D3, 259D,
262C, 262D, 262D3, 272C, 272D, 272D2, 272D3,
277C, 277C2, 277D, 279C, 279C2, 279D, 279D3,
287C, 287C2, 287D, 289C, 289C2, 289D, 289D3,
297C, 297D2, 299D, 299D2
Caterpillar Seat Part Numbers:
233-7391, 235-0512, 235-3151, 235-4119, 248-1362,
259-1635, 259-1637, 279-5273
Additional Caterpillar Machines:
906H, 906H2, 907H, 907H2, 908H, 908H2,
910K, 914K,
AP-555E, AP-600D, AP-655C, AP-655D, AP-1000E, AP-1055D, AP-1055E,
BG-500E, BG-600D, BG-655D, BG-1000E, BG-1055E, BG-2455D, BG-260D,
CP-44, CP-56, CP-64, CP-76, CP-433E, CP-533E, CP-573E, CP-633E,
CS-44, CS-54, CS-64, CS-74, CS-423E, CS-433E, CS-533E, CS-563E,
CS-583E, CS-663E, CS-683E,
CW-14, PS-150B, PS-150C, PS-200B, PS-360B, PS-360C
Kubota Compatibility
Part Number: RC448-38600
Machines:
KX91-3, KX121-3, KX161-3
Case International IH:
580, 590, 590T,
5120, 5130, 5140, 5150,
5220, 5230, 5240, 5250
John Deere
4400, 4500
Manitou
Various models fitted with Carraro 4WD front axle
Matbro:
TS260, TS270, TS280
Mounting & Compatibility
~ Universal mounting base with standard bolt pattern (often compatible with most machinery)
~ Can be fitted with seat belt or harness mounting provisions (if required)

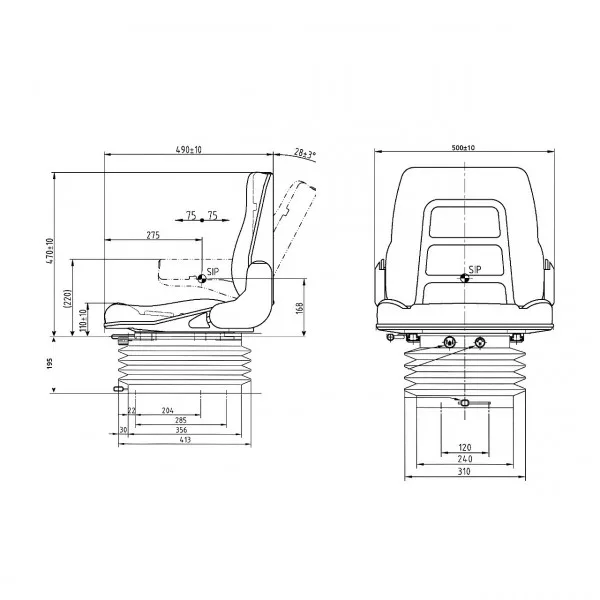

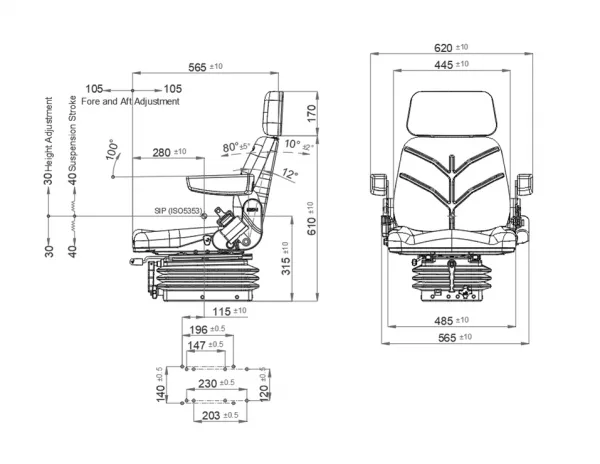

~ Mounting dimensions typically:
~ Width: ~380 – 420 mm (adjustable track)
~ Length: ~450 – 520 mm (180 mm fore/aft travel)
~ Height: adjustable in 3 mechanical steps (total 60 mm)
~ (Exact mounting hole patterns and baseplate dimensions can be provided on request)
~ Ergonomics & Adjustability
~ Adjustable lumbar support reduces lower-back strain during longer shifts
~ Reclining backrest allows personalized seating angle
~ Weight adjustment range: ideal for operators 50–130 kg without need for air suspension
~ Mechanical height adjustment for optimal vision and control comfort
We supply seats and spare parts from the world’s most respected manufacturers, including Grammer, Isringhausen, Pilot, SEARS, and KAB. Alongside our extensive product range, we provide full technical support, not only for the seats we supply but for vehicle seating systems in general.
With large stock holdings of seats, spare parts, and accessories, we are able to receive, process, and dispatch orders without delay, ensuring fast and reliable service.
Our team brings over 40 years of proven expertise in the seating industry, offering practical advice and solutions you can rely on.
