VW / Volkswagon T1 T2 T3 T4 LT 3 Point Seat belt

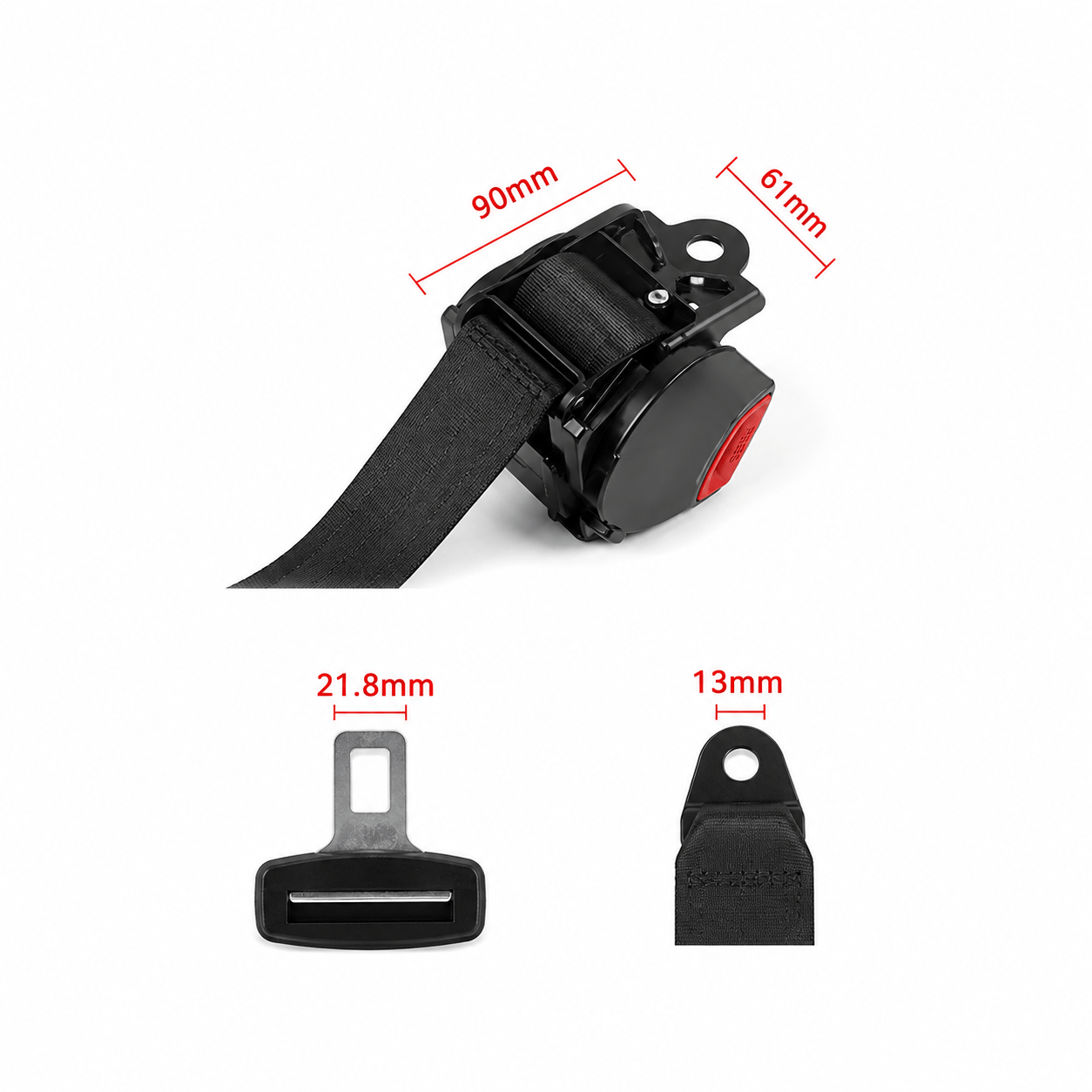

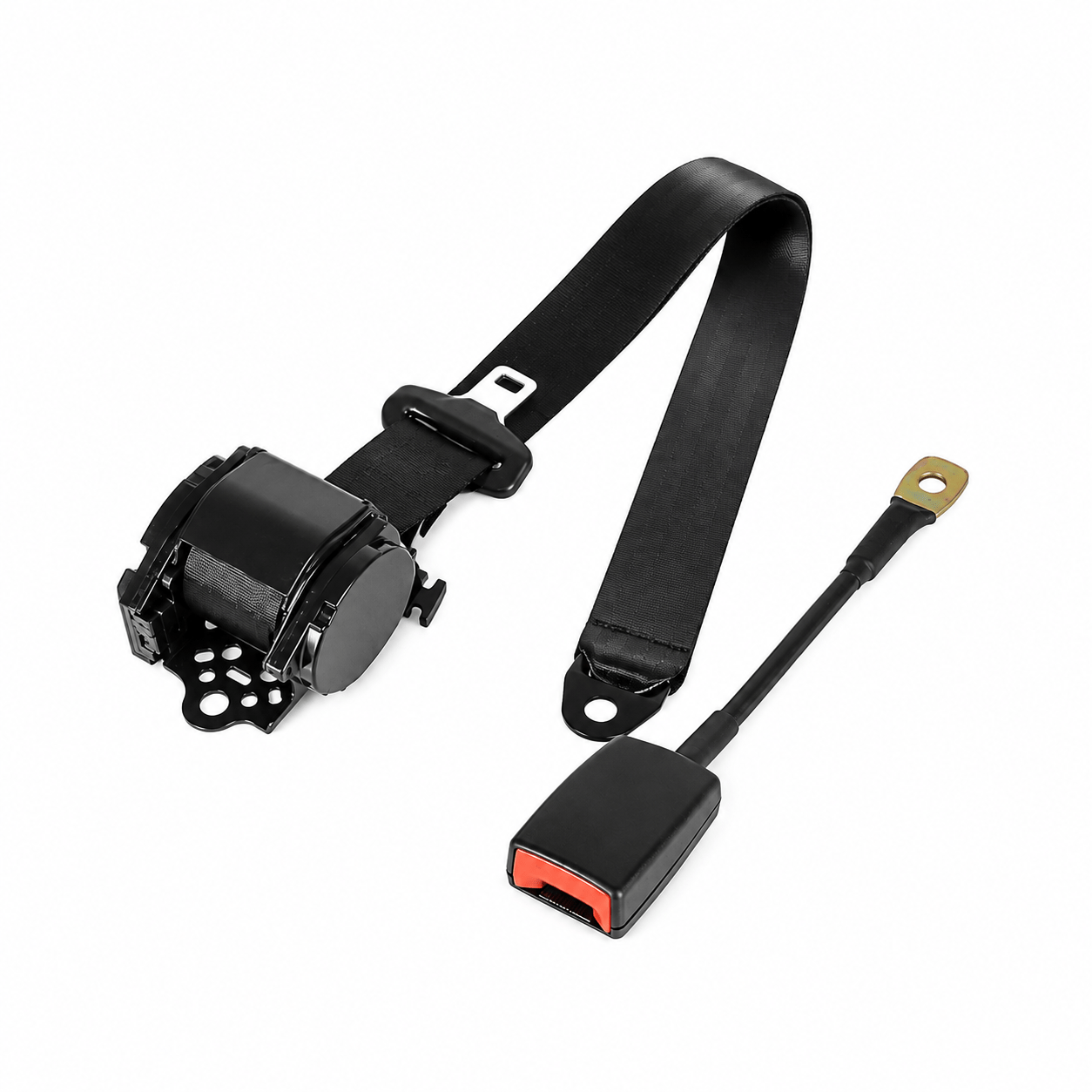

VW 3 Point Seatbelt Key Features

• 3-Point Automatic Seat Belt: Provides shoulder and lap restraint.
• VW Applications: Suitable for various Volkswagen T1, T2, T3, T4 and LT installations.
• Left or Right Installation: Can be used for suitable left- or right-hand seating positions.
• Front or Rear Applications: Suitable for driver, passenger and compatible rear-seat installations.
• Automatic Retractor: Retracts the belt webbing automatically when released.
• 45mm Black Webbing: Durable black seat belt webbing for a clean, professional installation.
• Long Belt Webbing: Approximately 2800mm belt length.
• 260mm Buckle/Receiver: Supplied with a complete buckle receiver approximately 260mm long.
• Mounting Hardware Included: Supplied with screws, nuts and plain washers.
• Vertical Mounting: Retractor is designed to operate when installed vertically.

Kit Includes

Each VW 3-point automatic seat belt kit includes:

• 1 × automatic seat belt/retractor with fastening material
• 2 × belt stoppers
• Belt dimensions: approximately 2800mm × 45mm
• 1 × seat belt buckle/receiver – approximately 260mm
• 3 × screws
• 3 × nuts
• 3 × plain washers
• Colour: Black

Applications

This 3-point replacement seat belt can be suitable for various Volkswagen vehicles, including:

• VW T1
• VW T2
• VW T3
• VW T4
• VW LT
• Volkswagen Transporters
• Classic VW vans
• Campervan conversions
• Motorhomes based on compatible VW platforms
• Driver seats
• Front passenger seats
• Suitable rear passenger seats

Compatibility ultimately depends on the vehicle’s seat belt mounting points and installation arrangement.

Tested & Approved

The 3-point automatic seat belt is stated as tested/approved to the following standards:

• E4 – 77/541 EEC
• SAE J386
• ISO 6683
• NORM FRED R16

Please contact Seat Systems if you require confirmation of the belt specification or approval documentation for a particular application.

Frequently Asked Questions

Is this seat belt suitable for a VW T1, T2, T3 or T4?

This 3-point automatic seat belt is intended for various VW T1, T2, T3 and T4 applications. Always check that your vehicle has the appropriate mounting points and that the retractor can be installed in the required vertical position.

Will this seat belt fit a VW LT?

It can be suitable for various Volkswagen LT applications, subject to the vehicle’s seat belt mounting configuration.

Can it be fitted to either the driver or passenger side?

Yes. The belt can be used for suitable driver or passenger seat installations, and the belt itself can be used on the left or right where the mounting arrangement permits.

Can I use this seat belt on a rear seat?

It can be used for compatible front or rear seating positions where the correct 3-point mounting arrangement is available.

Does the seat belt have an automatic retractor?

Yes. This is a 3-point automatic retractable seat belt. The retractor automatically takes up the webbing when the belt is released.

Does the retractor need to be mounted vertically?

Yes. This is important. The automatic belt retractor must be mounted vertically for correct operation.

How long is the seat belt?

The belt webbing is approximately 2800mm long and 45mm wide.

What length is the buckle?

The supplied seat belt buckle/receiver is approximately 260mm long.

Is mounting hardware included?

Yes. The kit includes 3 screws, 3 nuts and 3 plain washers, together with the belt components described above.

What colour is the seat belt?

The seat belt and webbing are black.

Is this suitable for a VW campervan?

It may be suitable for VW campervans and motorhome conversions based on compatible T1, T2, T3, T4 or LT vehicles. Seat belt suitability depends on the mounting arrangement and the requirements of the particular conversion.

Not sure if this seat belt will fit your VW?

Contact Seat Systems before ordering if you are unsure about compatibility. Providing your VW model, year, seating position and photographs of the existing mounting points can help us identify the appropriate seat belt.
