GRAMMER TYPE DS85 Msg85 MECHANICAL SEAT SUSPENSION

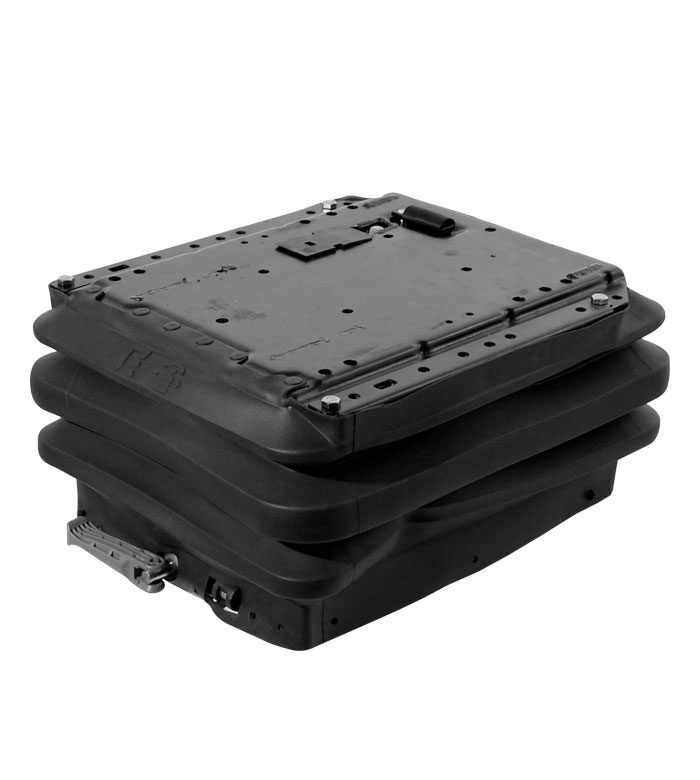

GRAMMER TYPE REPRODUCTION MECHANICAL SEAT SUSPENSION BASE. Please Note: You will be required to use your’diy’ knowledge when it comes to fitment as you may need to drill holes etc and you will also need to supply your own bolts to fix. Based on the Grammer DS85 this is an ideal replacement mechanical suspension unit and can be fitted to tractors, telehandlers, excavators, plant machinery and other multi purpose uses Directly compatible with many Grammer seat tops or can be retro fitted to many different machines to replace a tired or broken suspension unit. (This suspension unit can directly replace Grammer MSG85, MSG95 and DS85 suspension as they have the same mounting centres). Weight range 50 to 130KG. 60mm height adjustment in 3 steps. Height in lowest postion 140mm
