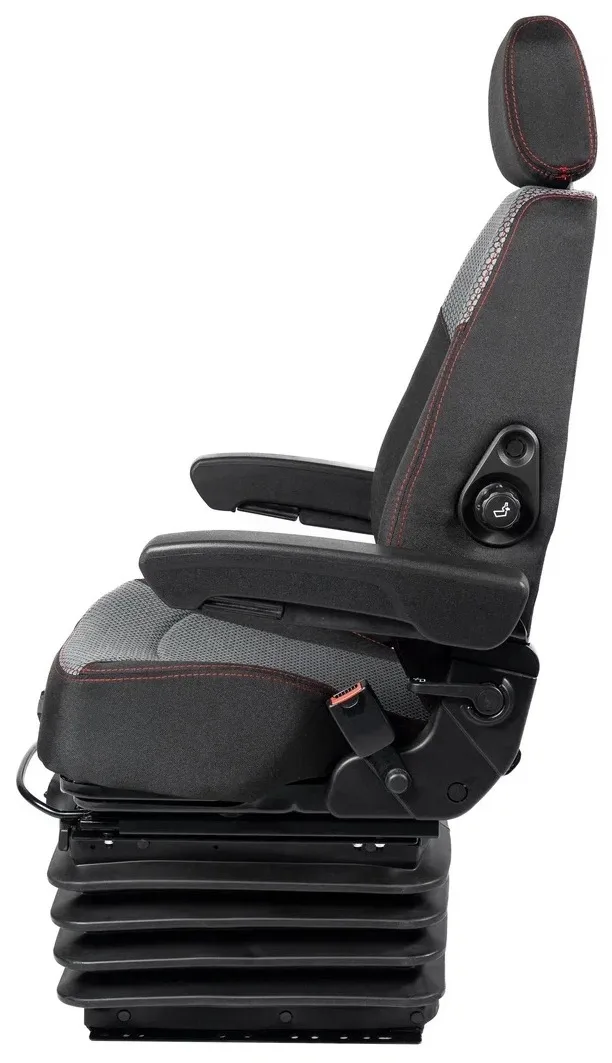

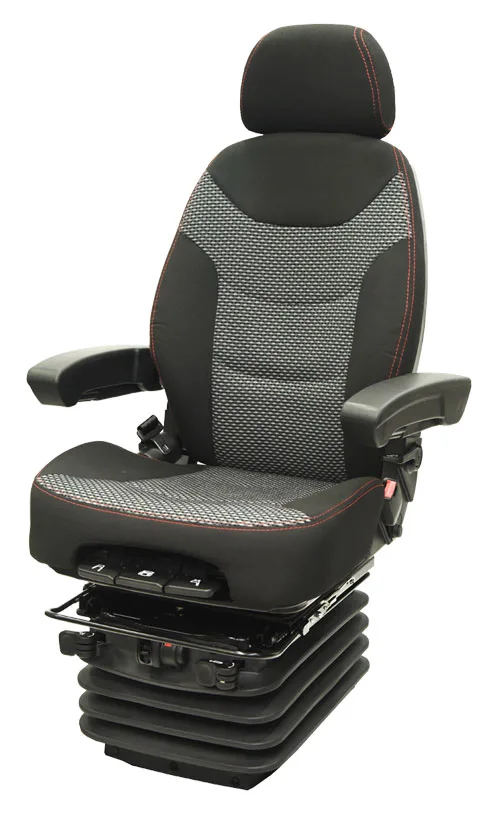

PILOT Trimact Operator Seat

Key Features

• Reinforced Air Shock Absorption: Advanced pneumatic system absorbs vertical shocks up to 100 mm.

• Built-in Compressor: Supports 12V or 24V power supply.

• Height Adjustment: Pneumatic adjustment up to 60 mm.

• Auxiliary Shock Absorber: Optional locking function for additional stability.

• Longitudinal-Horizontal Shock Absorption: Adjustable and lockable for operator comfort.

• Reinforced Adjustment Slides: Ceramic bearings with two-sided position fixation.

• Mounting Width: 260 mm (suspension to base).

• Maximum Operator Load: Up to 150 kg.

• Fabric Upholstery: Durable jacquard for breathability and wear resistance.

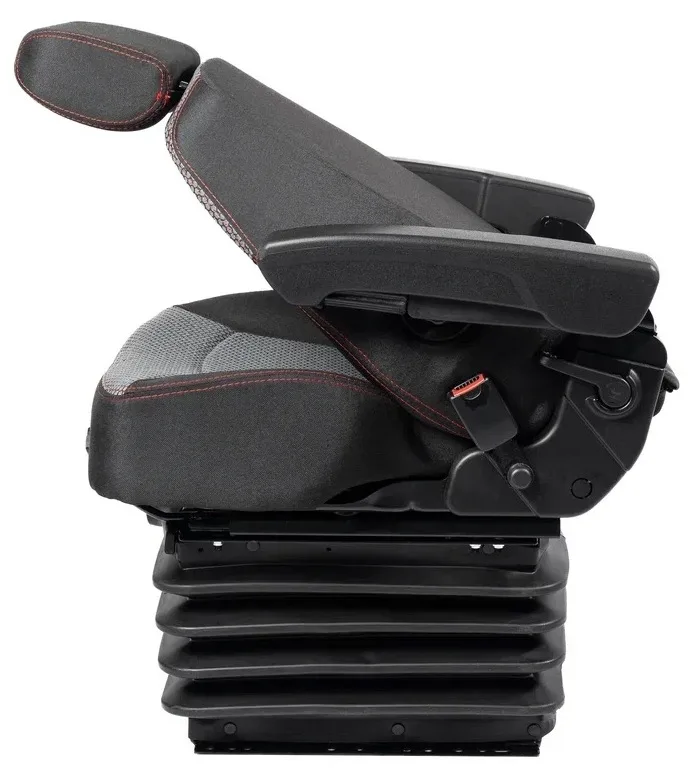

• Backrest: Adjustable with mechanical lumbar support. Pillow adjustable forward up to 60 mm.

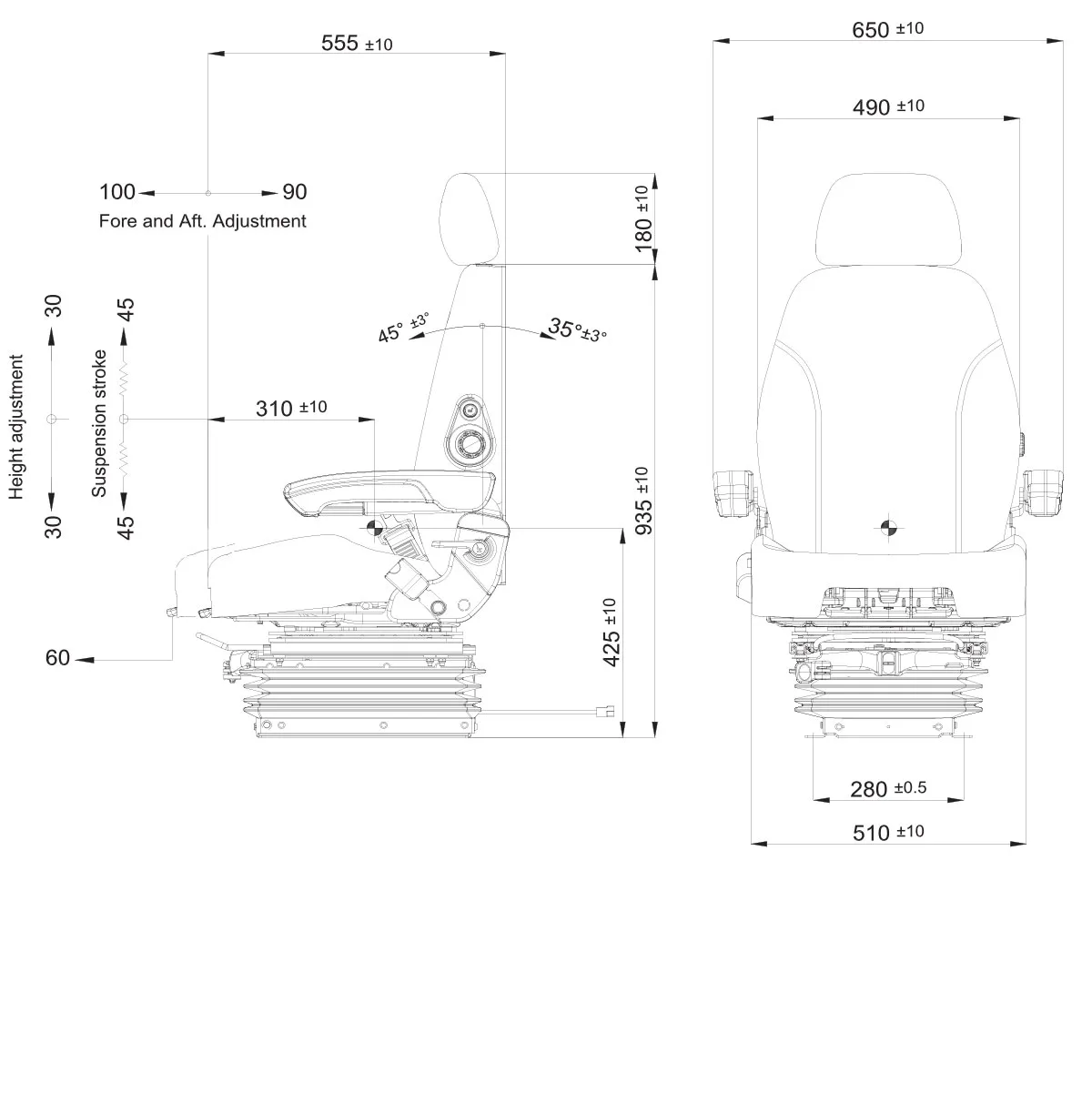

• Seat Mass & Dimensions: 54 kg, 600 x 520 x 1060 mm (L x W x H).

Extras:

• Adjustable headrest

• Adjustable-angle armrests

Applications

Ideal for: Cranes, Dozers, Dump Trucks, Excavators, Wheel Loaders, Telehandlers, Forestry Equipment

Case Excavators: 9007B, 9010, 9010B, 9020, 9020B, 9030, 9030B, 9040, 9040B, 9050, 9050B, 9060, 9060B, CX75SR, CX80, CX130, CX130B, CX135SR, CX160, CX160B, CX210, CX210B, CX210BLR, CX210BNLC, CX210LR, CX210N, CX225SR, CX240, CX240B, CX240BLR, CX240LR, CX250C, CX290, CX290B, CX330, CX350, CX350B, CX460, CX700, CX700B, CX800, CX800B

Caterpillar Excavators & Rigid Dump Trucks: 311, 312, 315, 315L, 320, 320L, 320N, 321C LCR, 322L, 325C LR, 325L, 330L, 350, 350L, 357L, 375

John Deere Excavators & Wheel Loaders: 70, 70D, 75C, 75D, 80, 80C, 85D, 110, 120, 120C, 120D, 135C RTS, 135D, 160C LC, 160D LC, 160LC, 200C LC, 200D LC, 200LC, 225C LC RTS, 225D LC, 230C LC, 230LC, 230LCR, 230LCRD, 240D LC, 250G LC, 270C LC, 270D LC, 290D, 290G LC, 330C LC, 330LC, 330LCR, 350D LC, 350G LC, 370, 370C, 450C LC, 450D LC, 450LC, 470G LC, 490, 490D, 490E, 495D, 550LC, 590D, 595D, 600C LC, 650D LC, 670G LC, 690C, 690CR, 690D, 690DR, 690E LC, 750, 790, 790D, 790E LC, 792, 792D LC, 800C, 850D LC, 870G LC, 892D LC, 892E LC, 992D LC, 992E LC; Wheel Loader: 744E

New Holland Dozers, Excavators & Wheel Loaders: D150, D150.B, DC180.B; Excavators: E70 MIDI, E80 MIDI, E130, E135B, E160, E175B, E215, E215B, E235BRS, E235BSRLC, E235BSRNLC, EH70, EH80, EH130, EH160, EH215; Wheel Loaders: FW90, FW110, FW130, FW170, FW190, FW270, LW90, LW110, LW110.B, LW130, LW130.B, LW130TC, LW170, LW170.B, LW170TC, LW190, LW190.B, LW230, LW230.B, LW270, LW270.B, W110, W130

Terex Articulated Dump Truck: TA25

Volvo Excavator & Wheel Loader: EC140B, L220D

Pilot Seating Systems – Spare Parts & Support

We stock comprehensive spare parts for all Pilot seats including:

• Adjustable dampers & air bag kits

• Roller bearings

• Seat belts, cushions & covers

• Level valves, handle kits, air valve kits

• Complete suspension units

Common Pilot seat models: Xtreme, Supreme, 95-IW1, P488/BM80H, P1098/A100H, P1098/EA100H, 2001ACSB2PSW/SM80X, T200, B300, T300, T322, T300ACACSB2PSW, T500-CRANE, P52LC, T902SW, T902-IDSS, T902-S, F2003-S/SM80X, P997LAC/MA100X, P996LAC/A100DT, F2002LAC/A80DT, P96AC/M100HT2, P21A/SM80X, ISRI6800/337, 6000/517

Why Choose Pilot Trimact Loader Seats:

• Safe and comfortable operation in extreme conditions.

• Reinforced suspension absorbs vibrations and shock loading.

• Ergonomic design reduces fatigue during long shifts.

• Compatible with a wide range of excavators, loaders, dump trucks, dozers, and wheel loaders.

Expert Support:
With over 40 years’ experience in seating systems, Seat Systems Ltd provides next-day delivery, expert guidance, and full technical support for all Pilot seating products.
